工程安裝揚聲器

Ci200TRB

Features KEF’s patented Uni-Q driver array

Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.

Ci200TRb

Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.

Requiring less than 59mm (2 3/8 in.) of mounting depth, the Ci200TRb fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

When used in passive mode, the Ci200TRb adds impressive depth of bass when matched with our Ci160TR round or Ci160TS square speakers. In active mode, powered by KEF’s KASA500 System Amplifier, the Ci200TRb delivers thunderous output expected from a subwoofer in today’s dynamic home theaters.

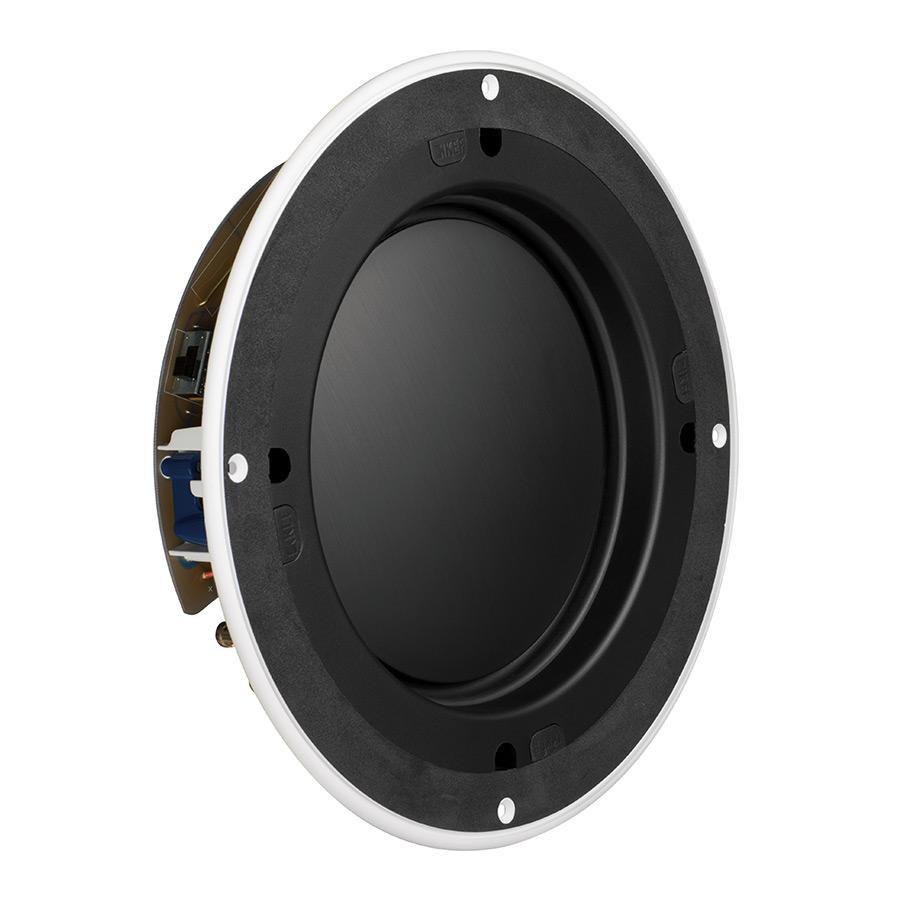

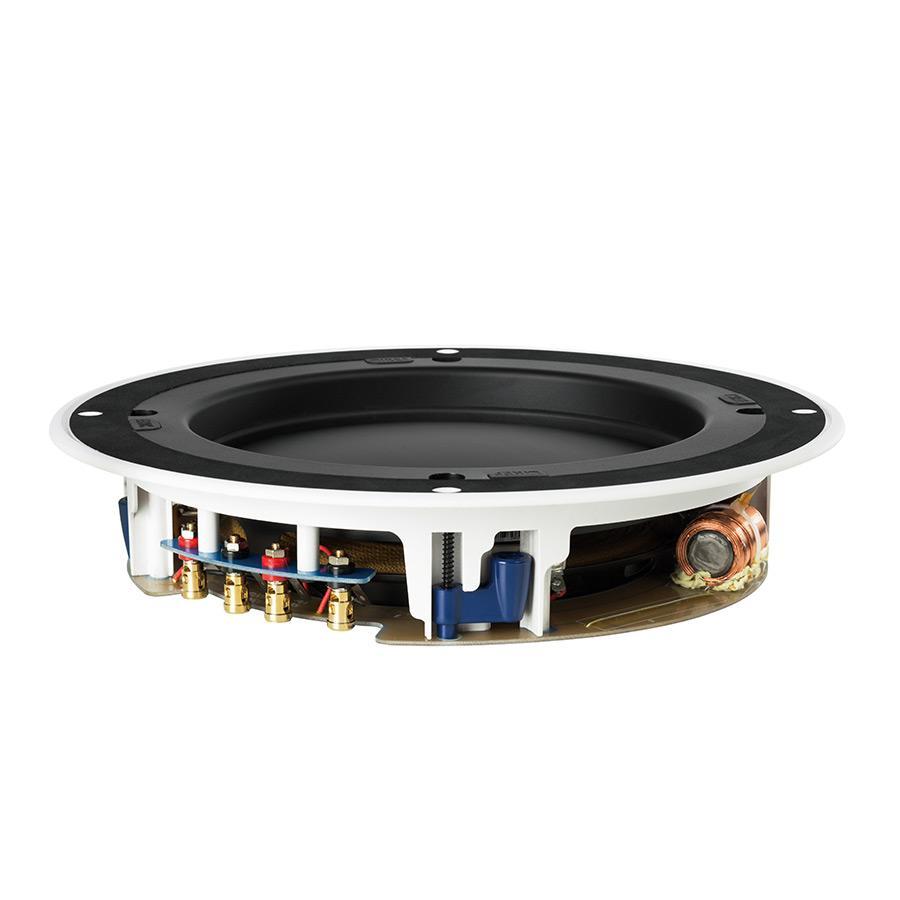

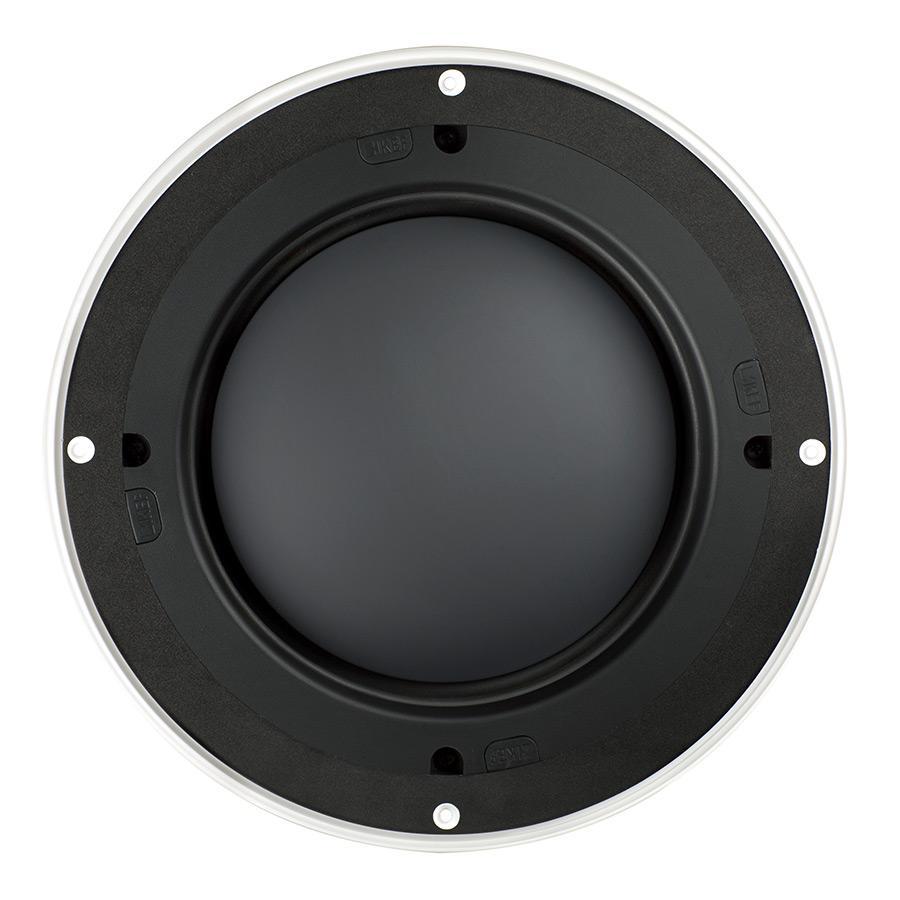

Grille Off

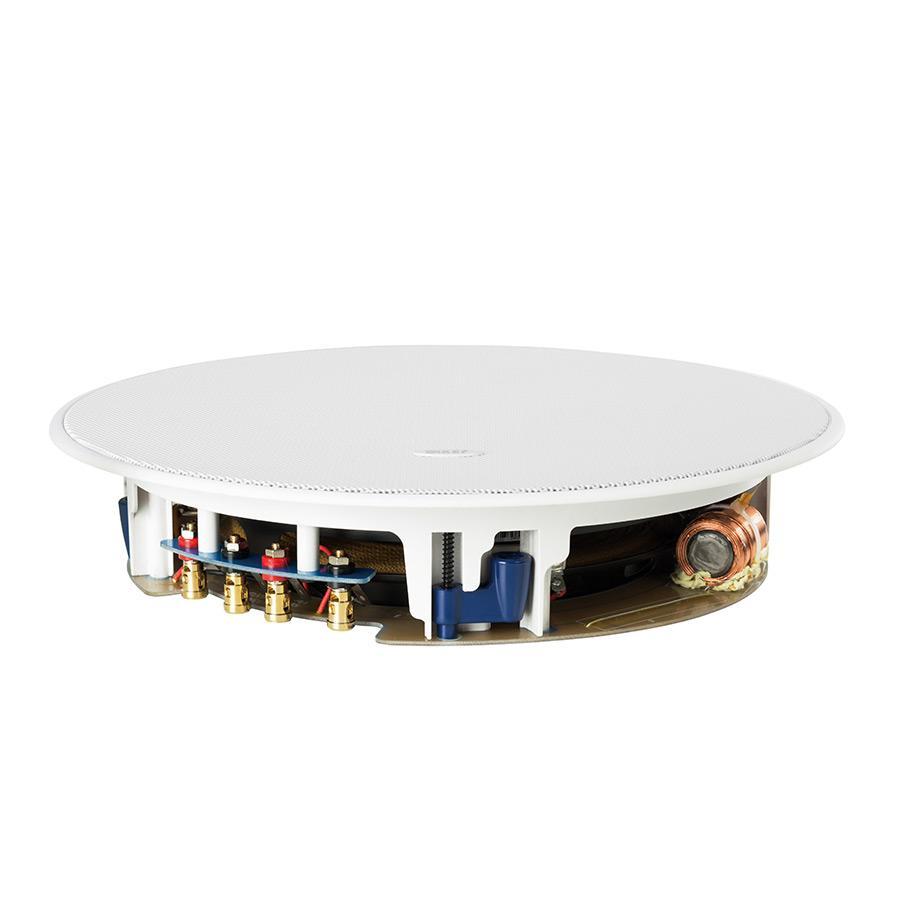

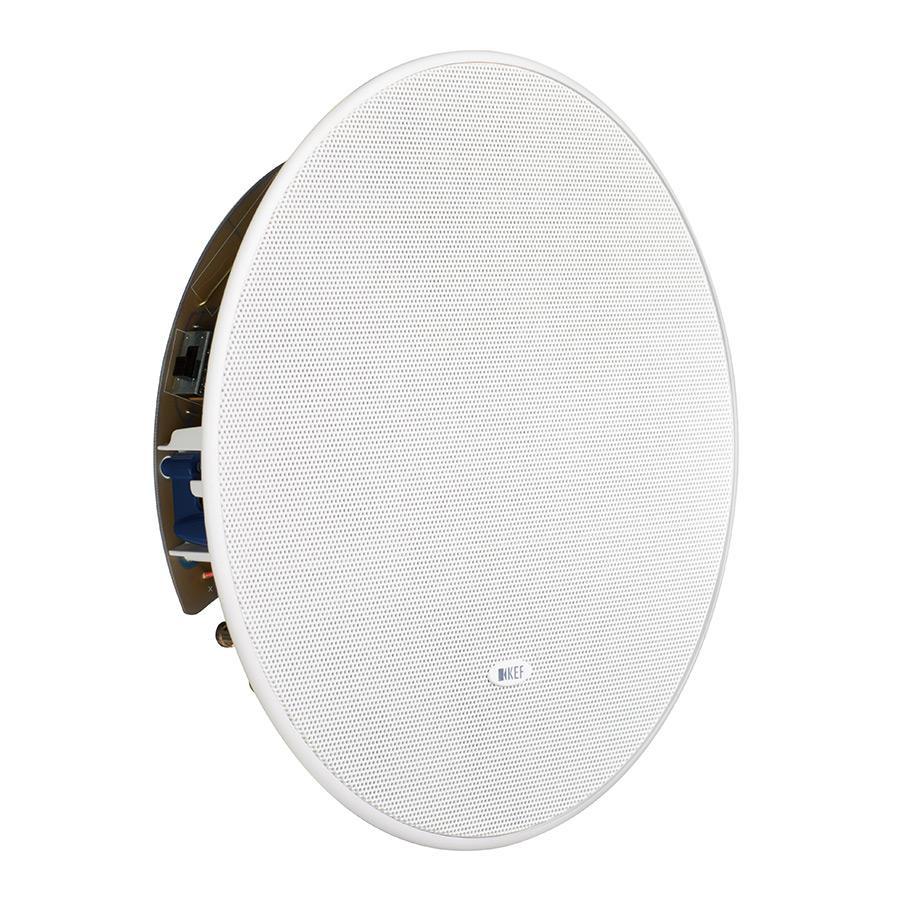

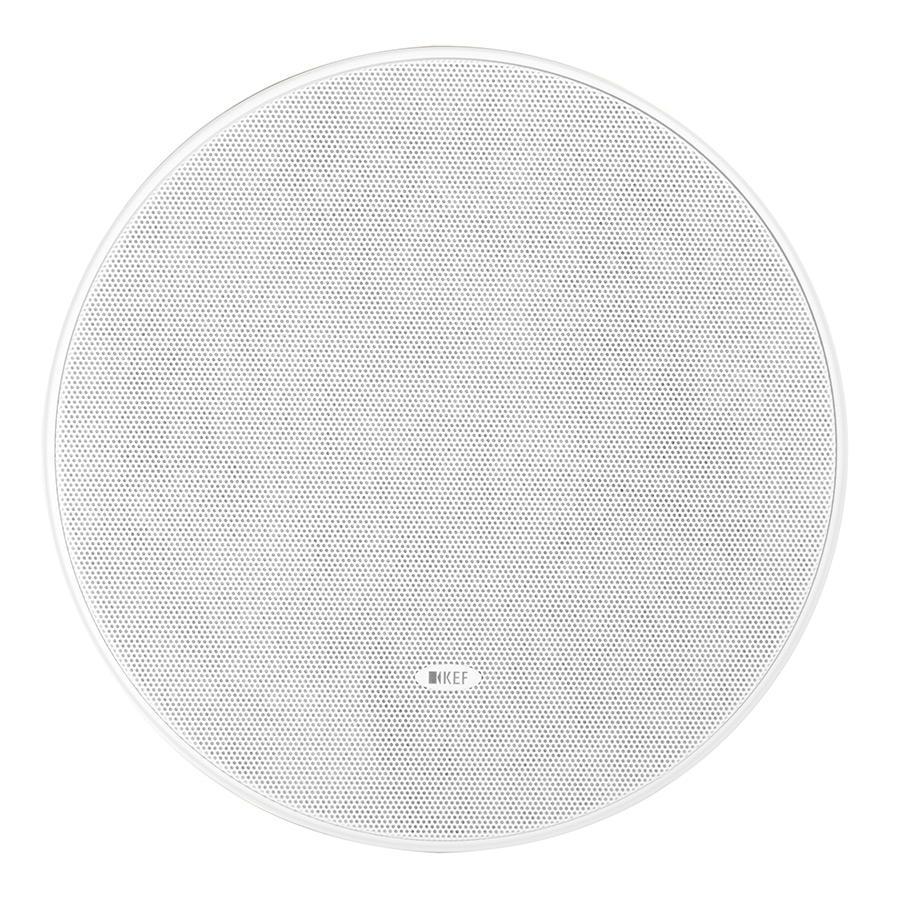

Grille On

細節


主要特點

accordion open
<59mm (2 3/8in.) mounting depth allows fitment to very restricted cavities
Ultra-slim 200mm (8in.) subwoofer unit with excellent bass extension
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used as mono or stereo subwoofer
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier

規格

accordion open
標示阻抗
2 x 8 Ohm - Stereo Mode
16 Ohm - Mono Mode
靈敏度
87dB (2.83V/ 1m)
頻率響應
42Hz-120Hz - Passive
32Hz-120Hz - With Kasa500
驅動單體
LF: 200mm (8 in.)
建議擴大機功率
10-125W - Passive
KASA500 - With Kasa500
產品外部尺寸 (H X W X D)
Diamater: 290 mm (11.42 in.)
Depth: 63mm (2.48 in.)
圖樣尺寸 (H X W)
240mm (9.45 in.)
安裝深度
天花板厚度(最大值) : 26mm (1.03 in.)
天花板厚度(最小值) : 4mm (0.16 in.)
表面安裝深度
59mm (2.32 in.)
選配框架
RIF200R
選配後置音箱
RNC200R
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
