配件

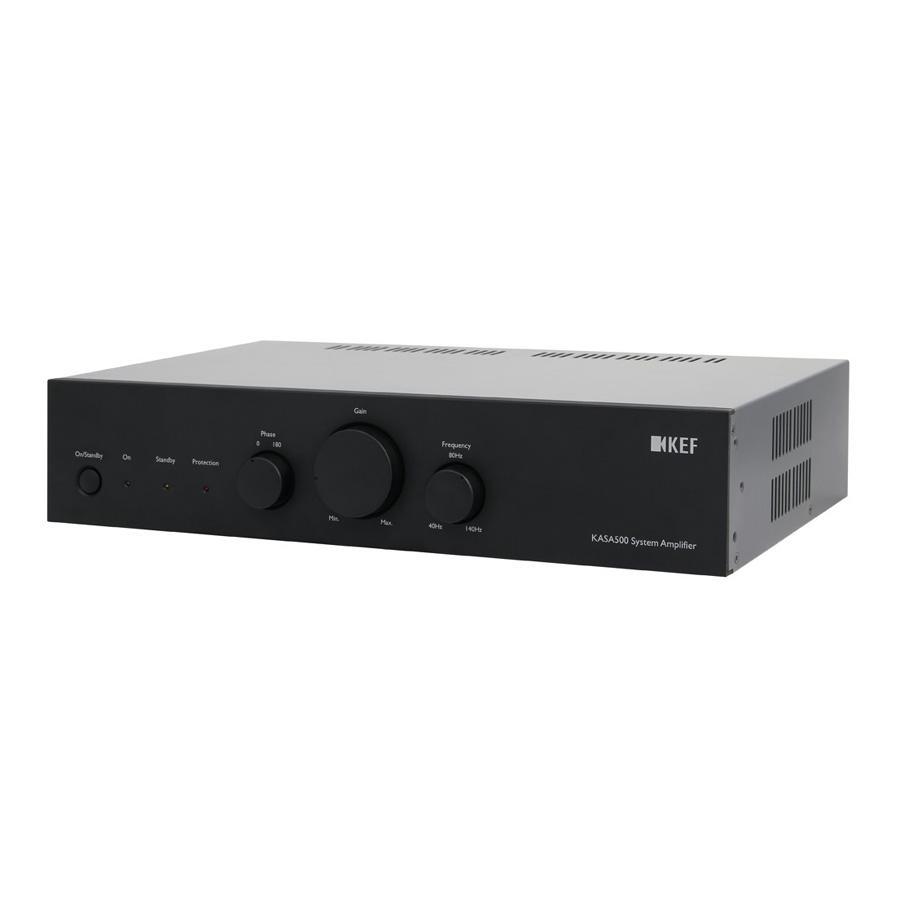

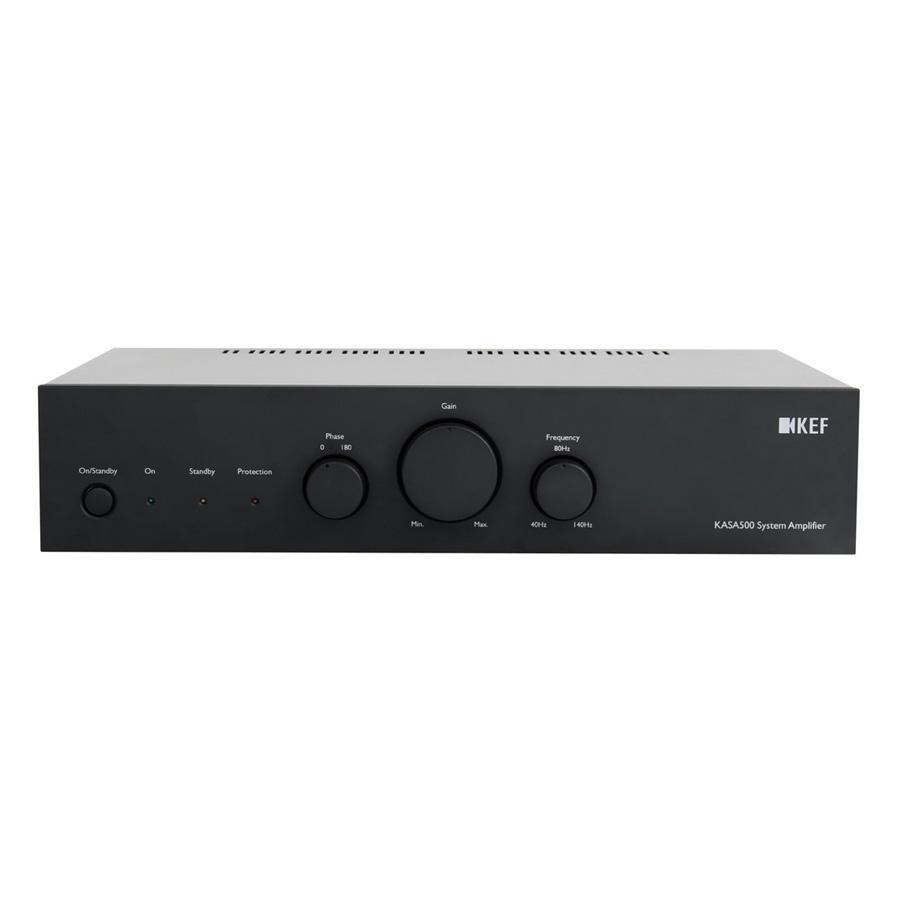

KASA500 Amplifier

KASA500為強而有力的D類雙 250WPC擴大機

KASA500為強而有力的D類雙 250WPC擴大機。DSP控制系統優化KEF Ci超重低音的擴大機並傳送出響亮如雷鳴低沉之低音。

KASA500

KASA500為強而有力的D類雙 250WPC擴大機。DSP控制系統優化KEF Ci超重低音的擴大機並傳送出響亮如雷鳴低沉之低音。線路和喇叭的電平輸入、DSP搭載可選用的高通過濾器,造就了KASA500的不同凡響,可不受限的選用搭配。內附可選用之機架。

KASA500 Software update tool

KASA500 is a powerful Class-D Dual 250WPC amplifier. This DSP controlled system amplifier is optimized to deliver thunderous bass from KEF Ci subwoofers. With both line and speaker level inputs, and DSP configurable pass-through with optional high pass filters – the KASA500 is versatile and can be deployed in limitless system configurations. To allow for future flexibility KEF engineers may update the KASA500 DSP firmware to optimize performance with additional KEF speakers. The KASA500 Programmer* is a proprietary tool for updating the KASA500 firmware. NOTE: KASA500 software requires a "USB Type A Male to USB Type A Male cable" for connection between your computer and the KASA500.

Download KASA500 Programmer


The latest KASA500 Firmware provides settings for KEF Ci subwoofer models Ci3160RLb-THX, Ci200QSb-THX, Ci200TRb and Ci4100QLb with THX certified performance (if applicable) in both mono and stereo mode.

Download KASA500 Firmware Rev. 10.05

Download KASA500 EQ setting dip switch chart


KASA500 manual includes installation diagrams for both home theater and music sub/satellite installations.

Download KASA500 user manual



* KEF KASA500 Programmer currently runs only on Windows based machines.

細節


規格

accordion open
分頻點
40 - 140Hz or software bypass
輸入

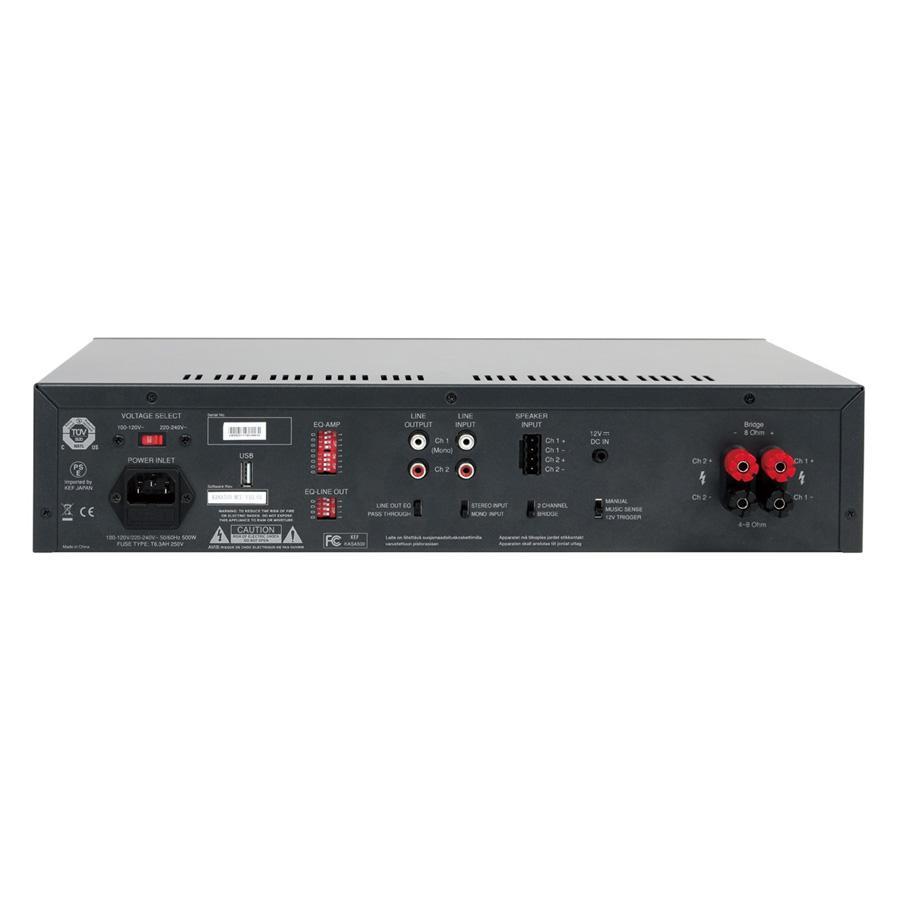

Selectable stereo RCA line level, or mono LFE RCA level; Stereo speaker level
12伏特觸發器輸入電壓
8 to 14 Volt DC@1.5mA max ⅛" diameter female plug (tip positive or tip negative)
建議擴大機功率
(<1% THD) 2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms
擴大器功率
2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms (<1% THD)
產品外部尺寸
H x W x D : 88 x 432 x 304mm (3½ x 17 x 12 in.)
H x W x D with feet : 92 x 432 x 304mm (3⅝ x 17 x 12 in.)
H x W x D with rack ears; 2 EIA rack space: 88 x 483 x 304mm (3½ x 19 x 12 in.)
重量
4kg (9 lbs)
單位
一件
備註
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
