REFERENCE 5

  • 限時限量優惠
  • 正常價格 TWD $620,000

顏色

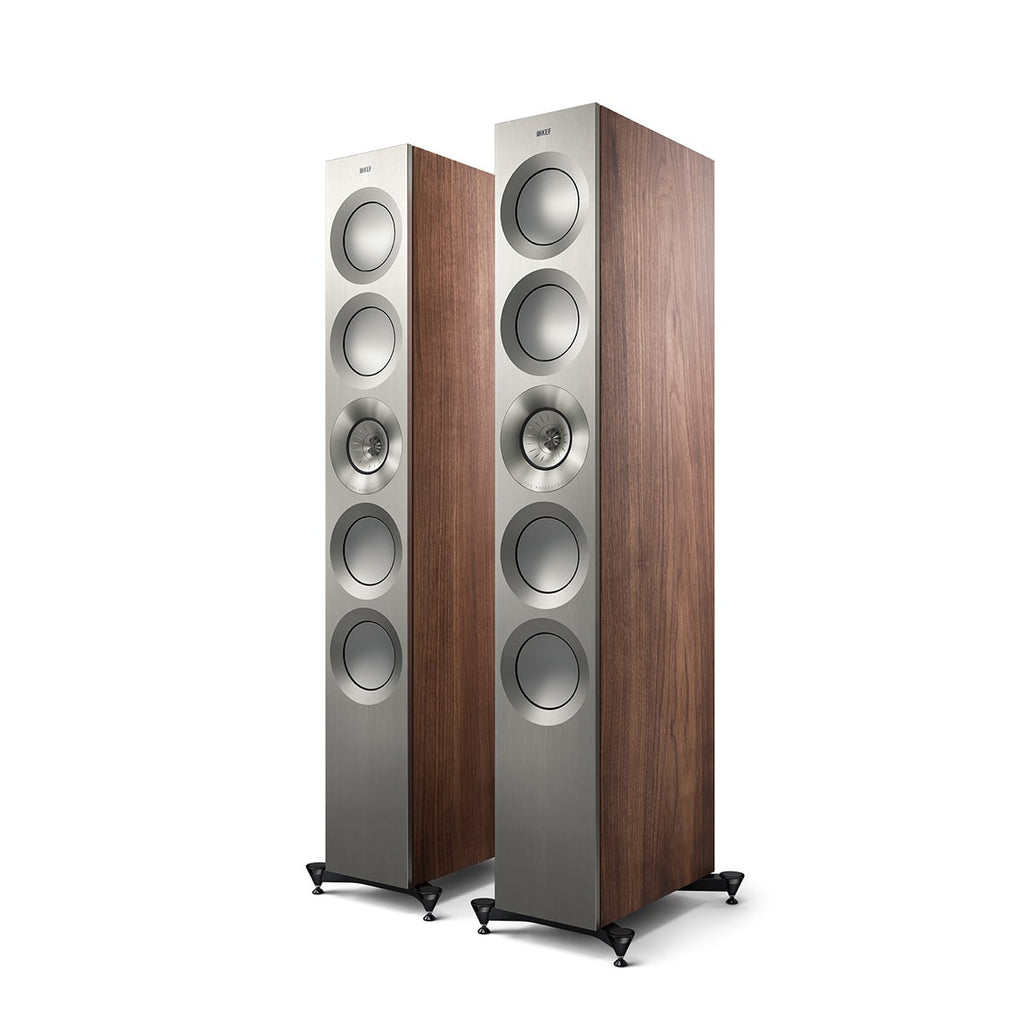

Silver Satin Walnut

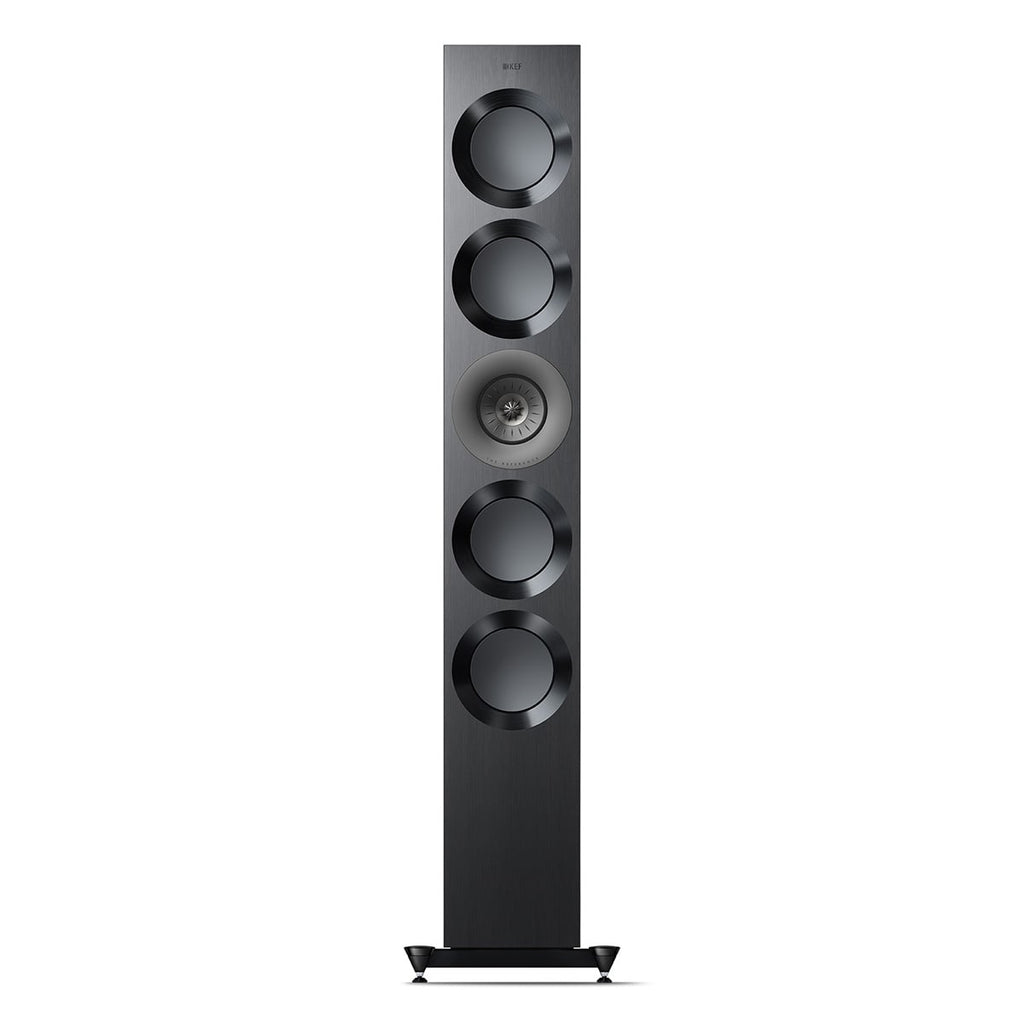

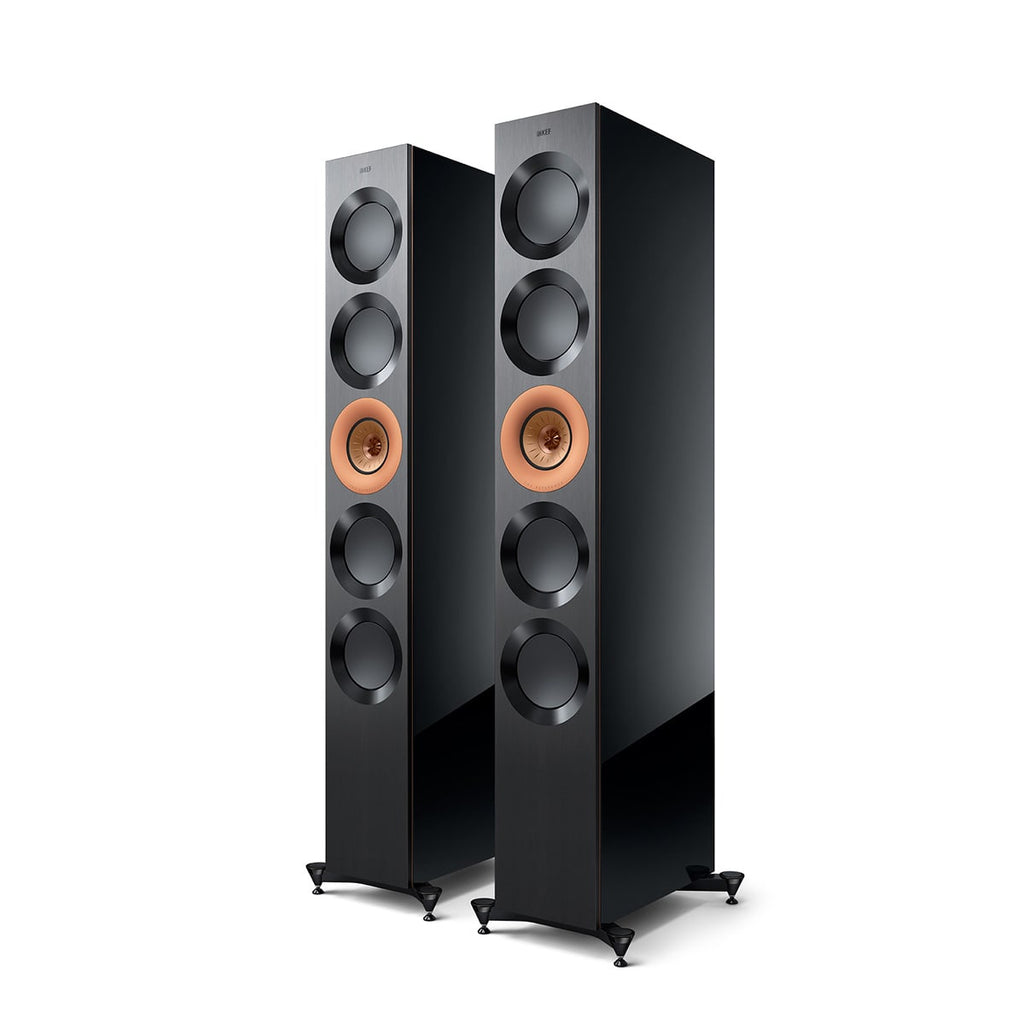

Copper Black Aluminium

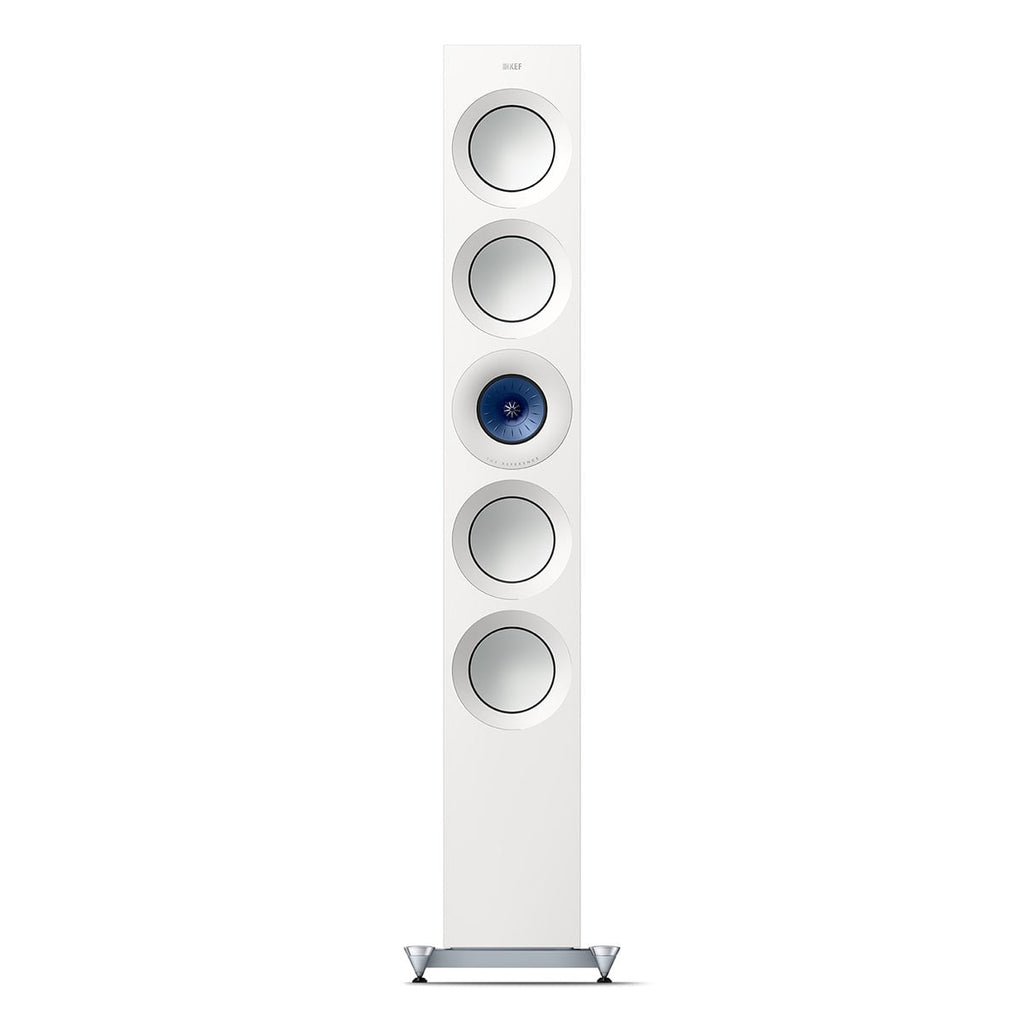

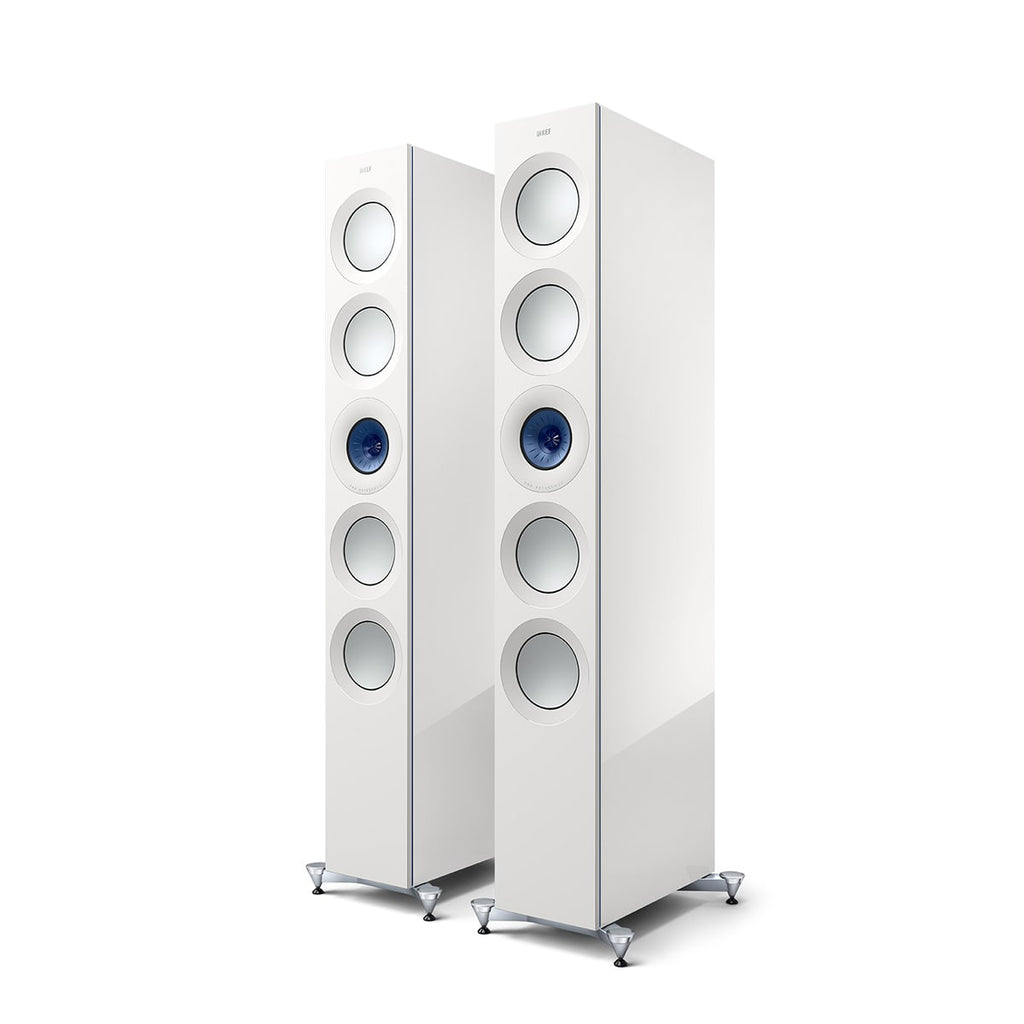

Blue Ice White
Piano Black High Gloss
Satin American Walnut
Luxury Gloss Rosewood

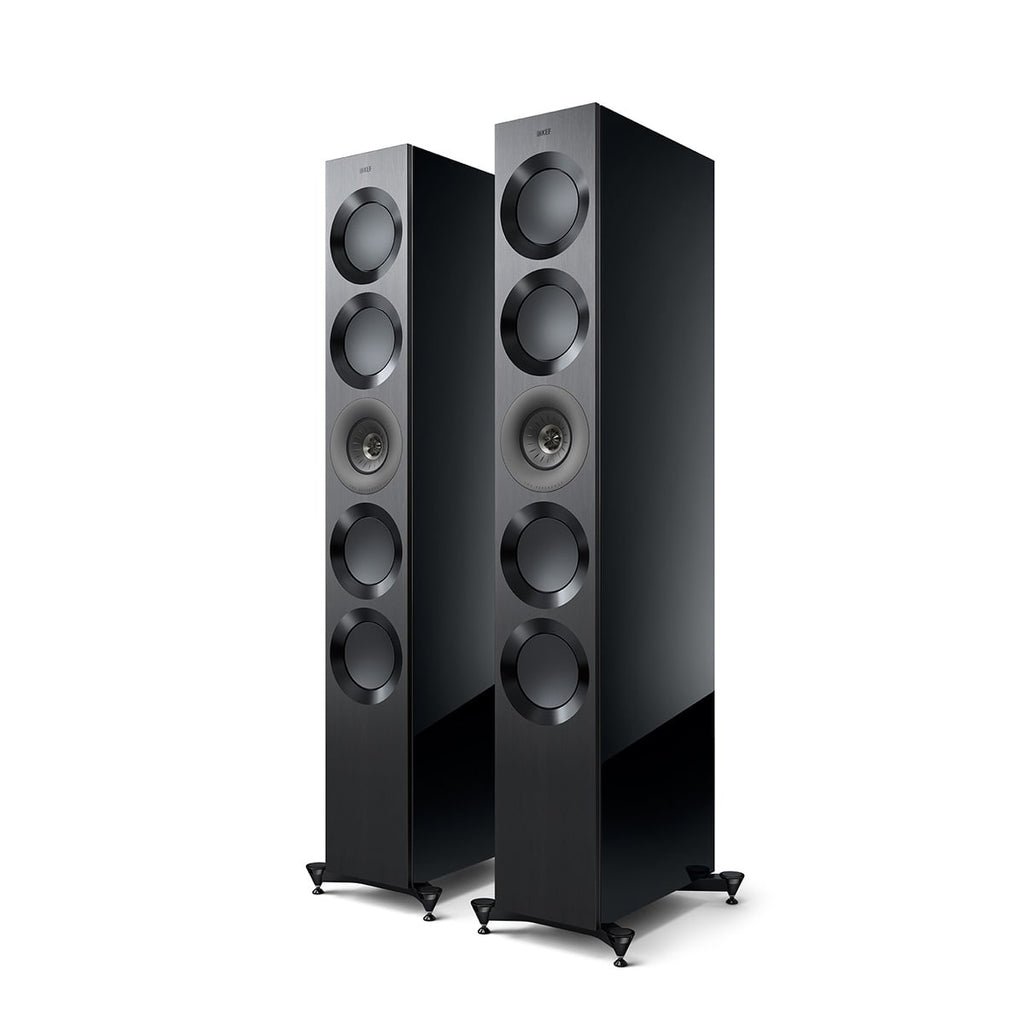

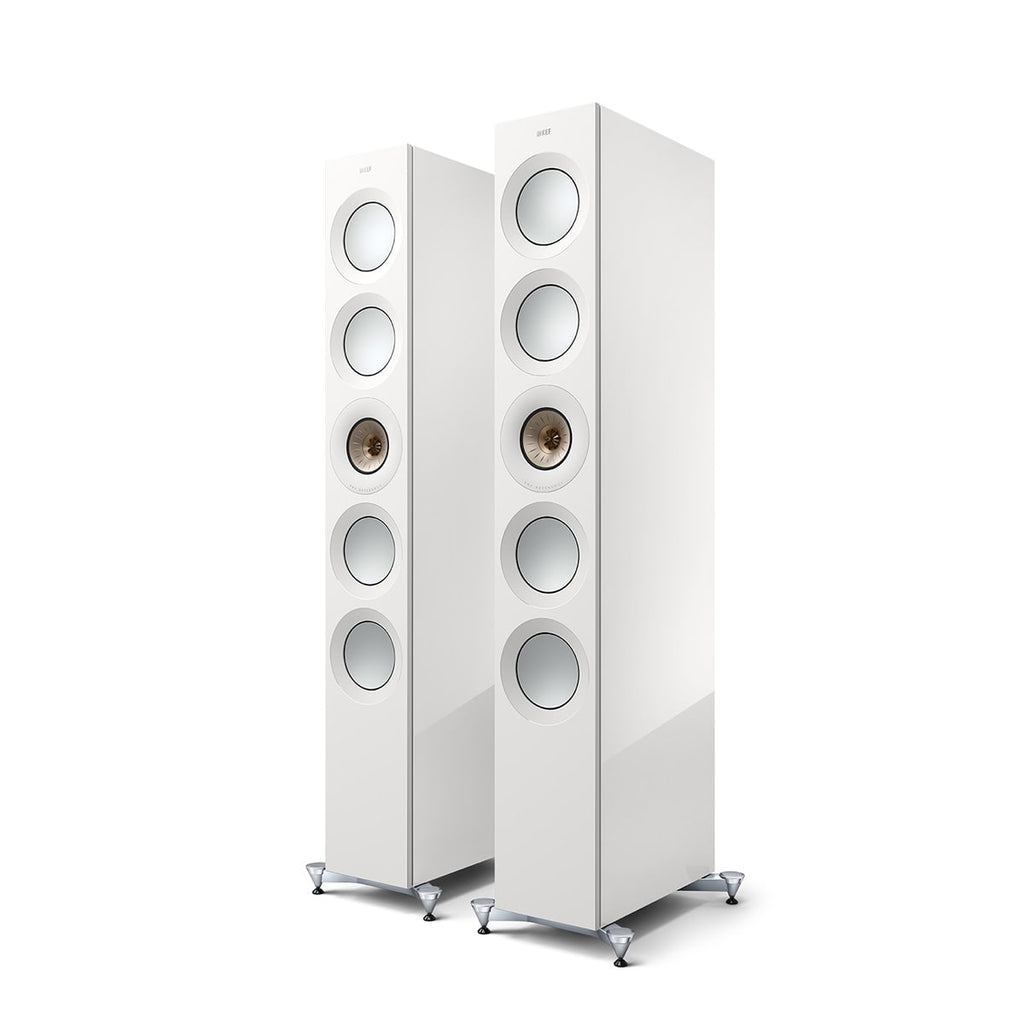

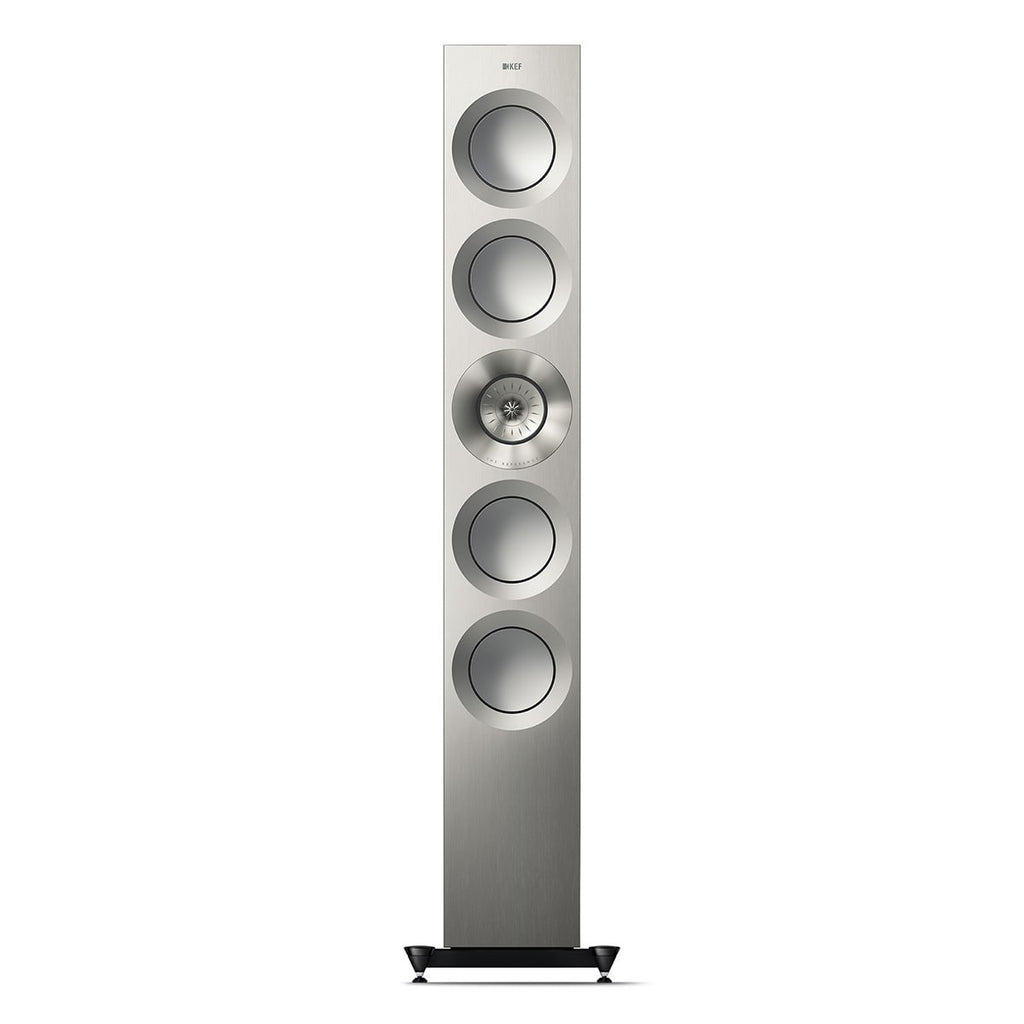

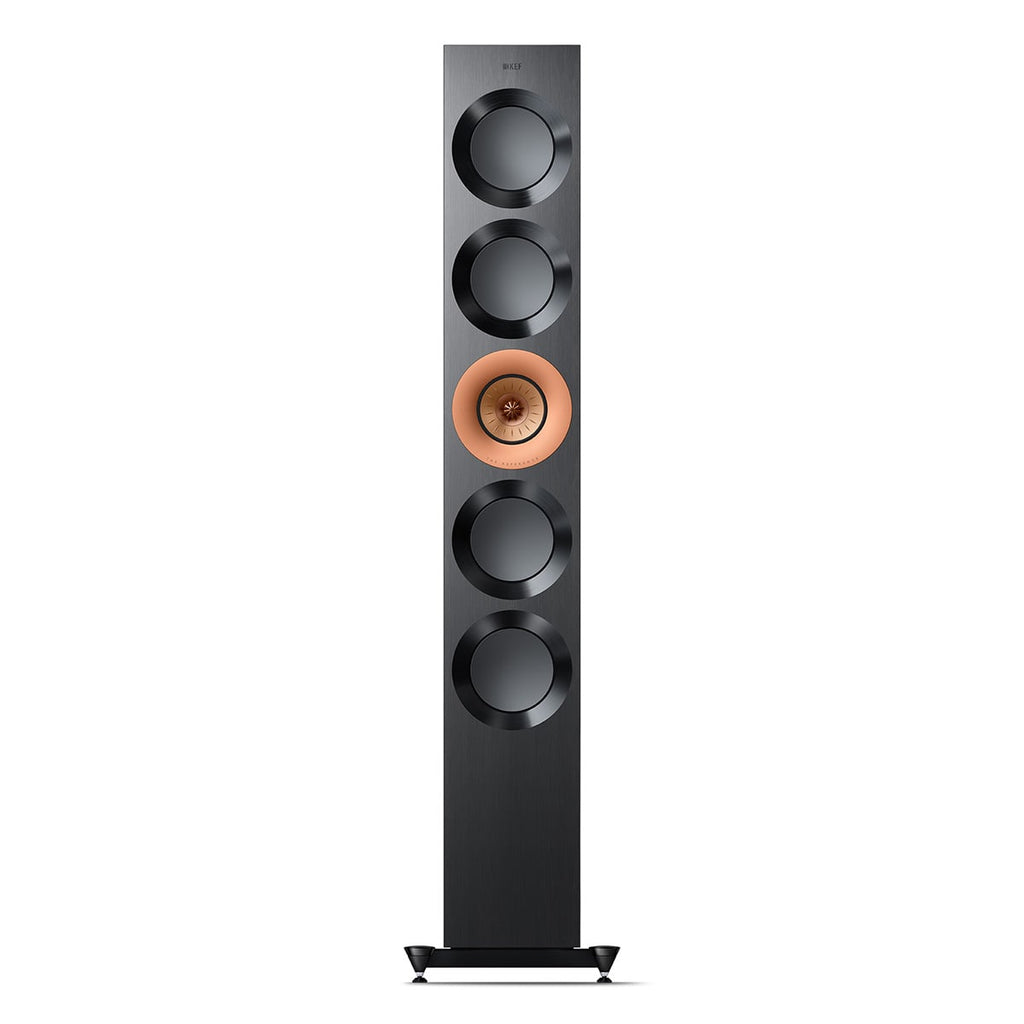

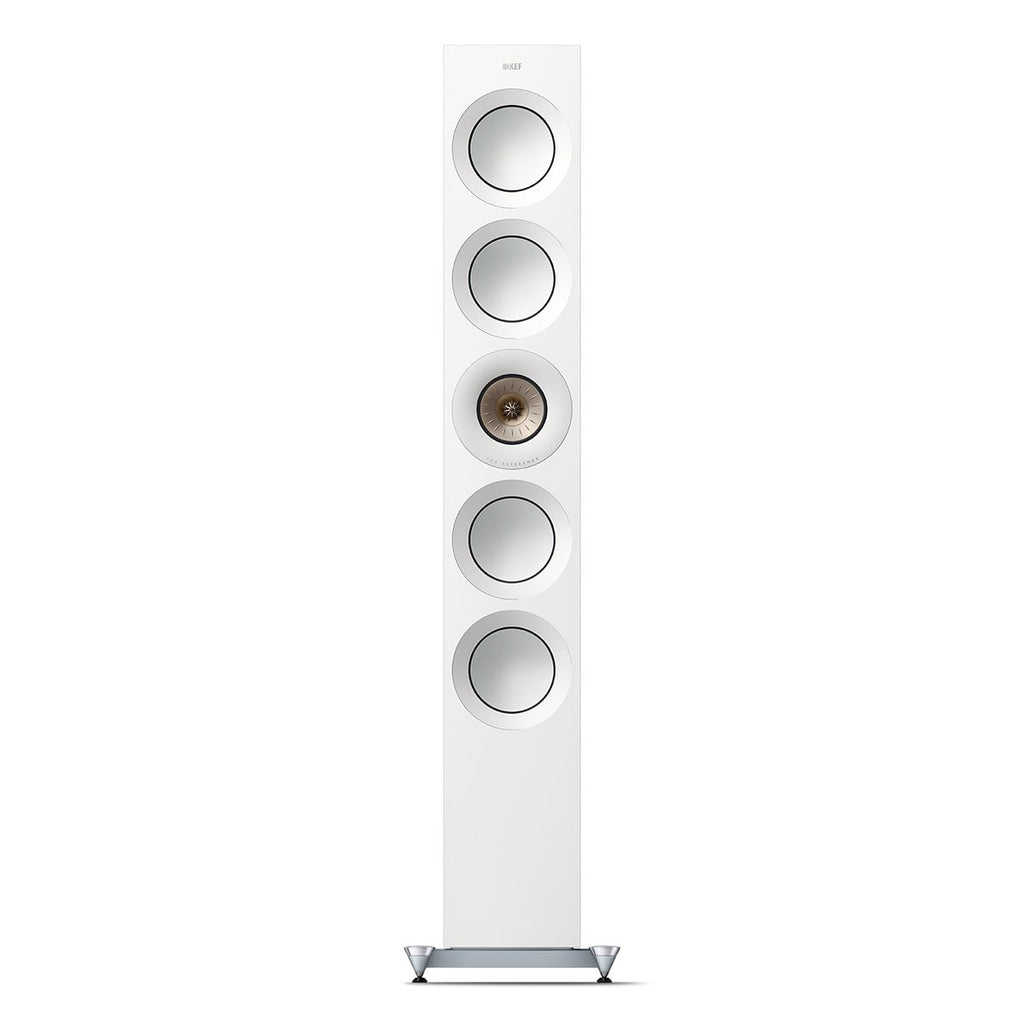

旗艦三音路落地式揚聲器

對於極致推崇原音再現的您,Reference 5 能完美演繹了 KEF 投注在 The Reference 設計哲學裡的創新熱忱,是追求完美聲效體驗的理想之選。

Hand-built in Maidstone, UK.


音質

REFERENCE 5

此款三音路落地式揚聲器搭載四顆強力的 165mm(6.5 吋)低音驅動單體,結合 KEF 最新的 125mm(5 吋)Uni-Q 陣列及新款 25mm(1 吋)通風鋁製球型高音單體,在低音表現靈活且運用自如,與中音流暢地譜出扣人弦的精準音效和深沉的動人音場。

SPECIFICATIONS

細節

技術規格

重量

60.2kg (132.7lbs)



DIMENSION (H X W X D)

H x W x D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )

H x W x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)



箱體設計

Three-way bass reflex



單位

一對

頻率範圍

Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)



頻率響應

40Hz - 35kHz (±3dB)



Crossover Frequencies

350Hz, 2.8kHz



最大輸出

116 dB (peak sound pressure level at 1m with pink noise)



擴大機

50-400W



靈敏度

90dB (2.83V/1m)



諧波失真

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz



阻抗

(min.3.2 Ohms)


驅動單體

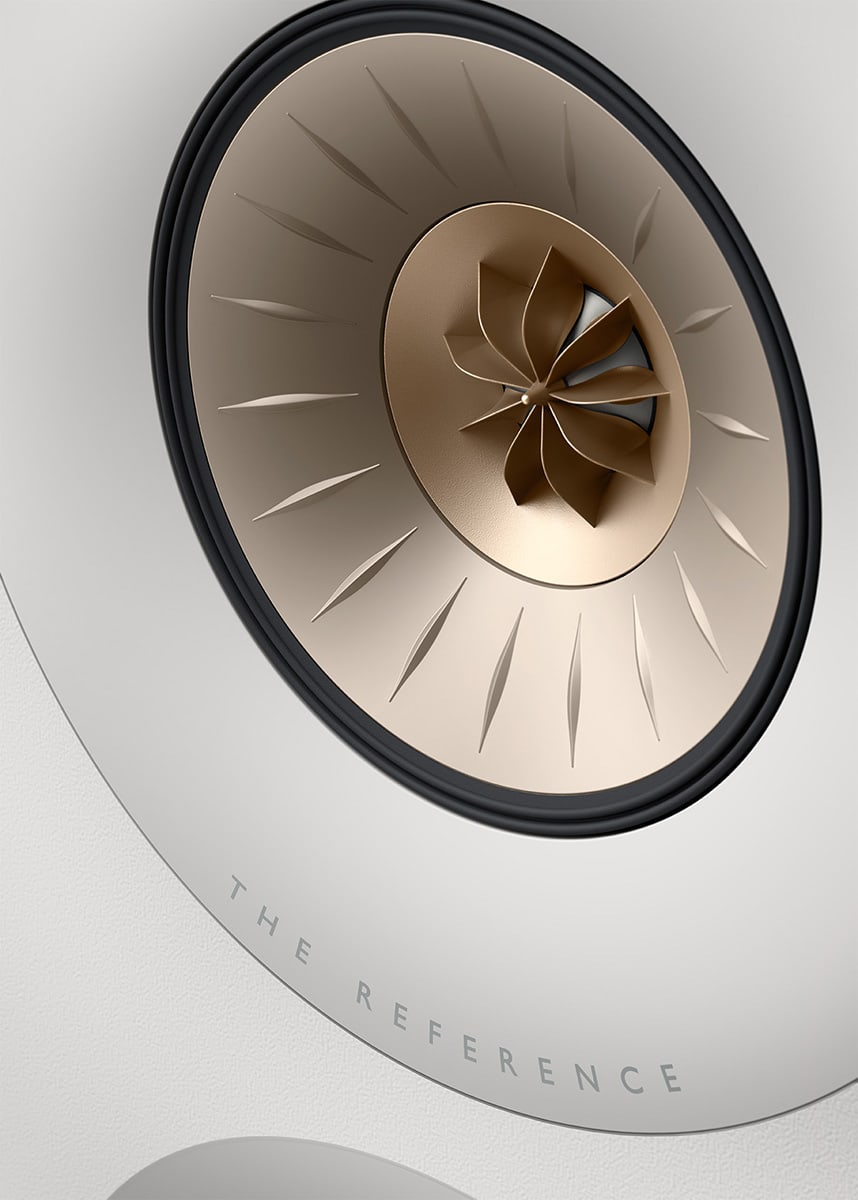

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units: LF: 4 x165mm (6.5in.) aluminium



分頻點

350Hz, 2.8kHz




檔案下載

THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet

KEF 保留持續研發、修正或更改規格的權利 E. & O.E.

獎項和專業評語

STEREOPHILE PRODUCT OF THE YEAR EDITOR’S CHOICE AWARD

Stereophile Magazine — 2017

 Review – STEREOPHILE MAGAZINE

"The immaculately finished KEF’s gave me all I need for musical and sonic satisfaction."  — 2017

Home Cinema Choice Reference Status, High End Hero

"This system is British surround high-fidelity at the utter state-of-the-art. And it’s easily worthy of its Reference name." - 2016

Full Review

Grand Prix Award

HiVi Magazine  — 2015

Stereo Sound Grand Prix 2014

Stereo Sound Magazine - 2014

Audio Excellence Silver Award 2015

Audio Accessory Magazine - 2015

The Best of the speaker in 2014

Stereo Magazine - 2014

Hi-Fi News & Record Review - Outstanding Product

"They create a soundstage effortlessly disengaged from the boxes that are producing it... On vocal tracks especially, the REFERENCE 5s seemed to get out of the way completely and let the singer's performance become as intimate and heartrending as you could wish… This is clearly an outstanding product." - 2014

EUROPEAN HIGH-END AUDIO 2014-2015

"…its above‐average sensitivity, excellent bass extension and handsome appearance earns the Reference 5 EISA's High‐End Audio accolade."  - 2014

5 STAR REVIEW - HI-FI WORLD

"Admirably accurate and netural, these KEFs will suit those who like to hear their music as it should be." - 2017
