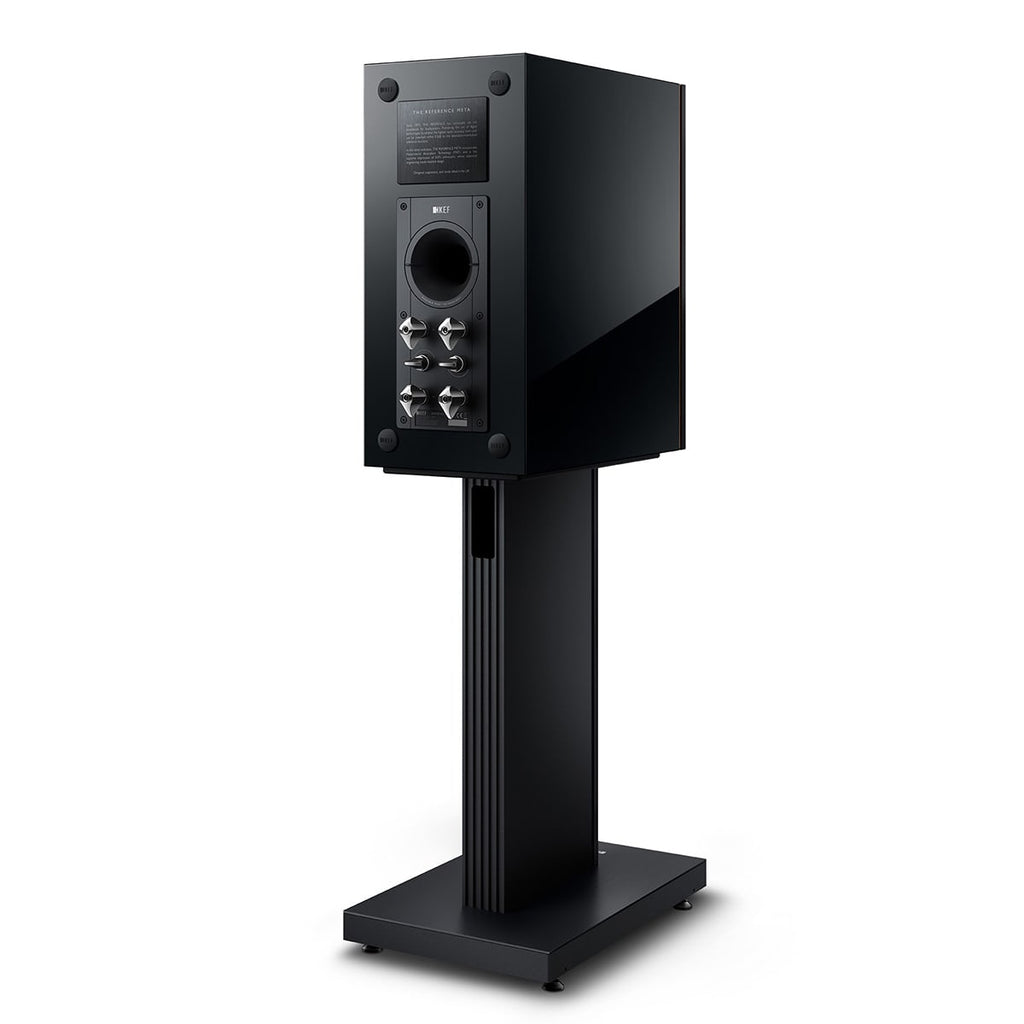

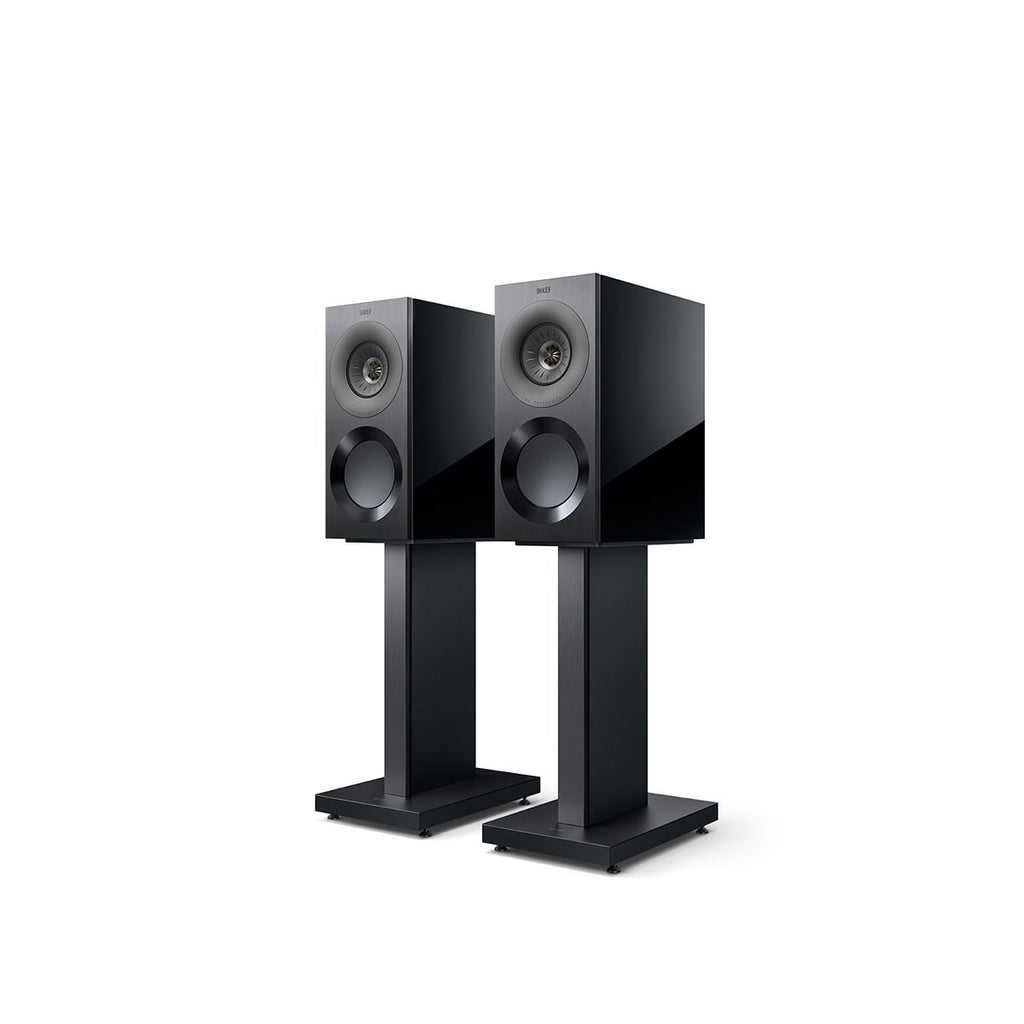

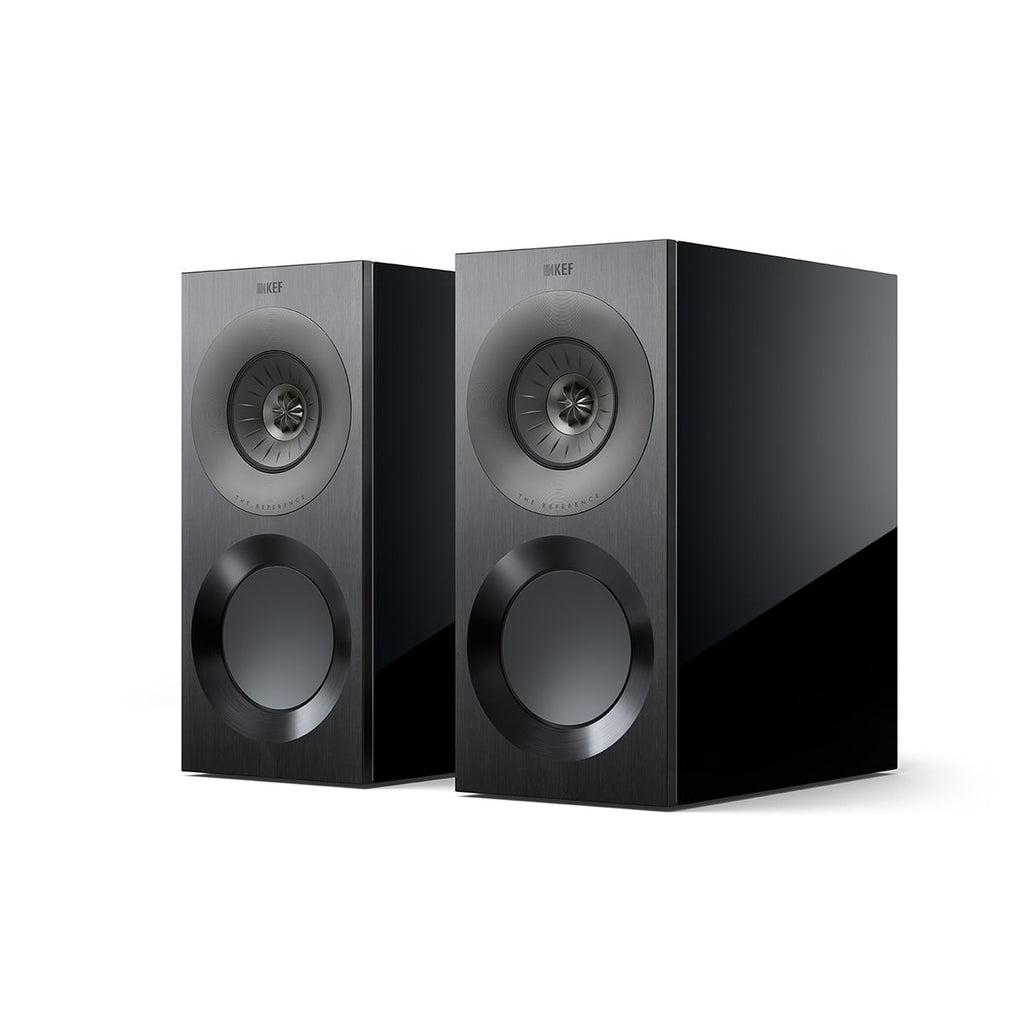

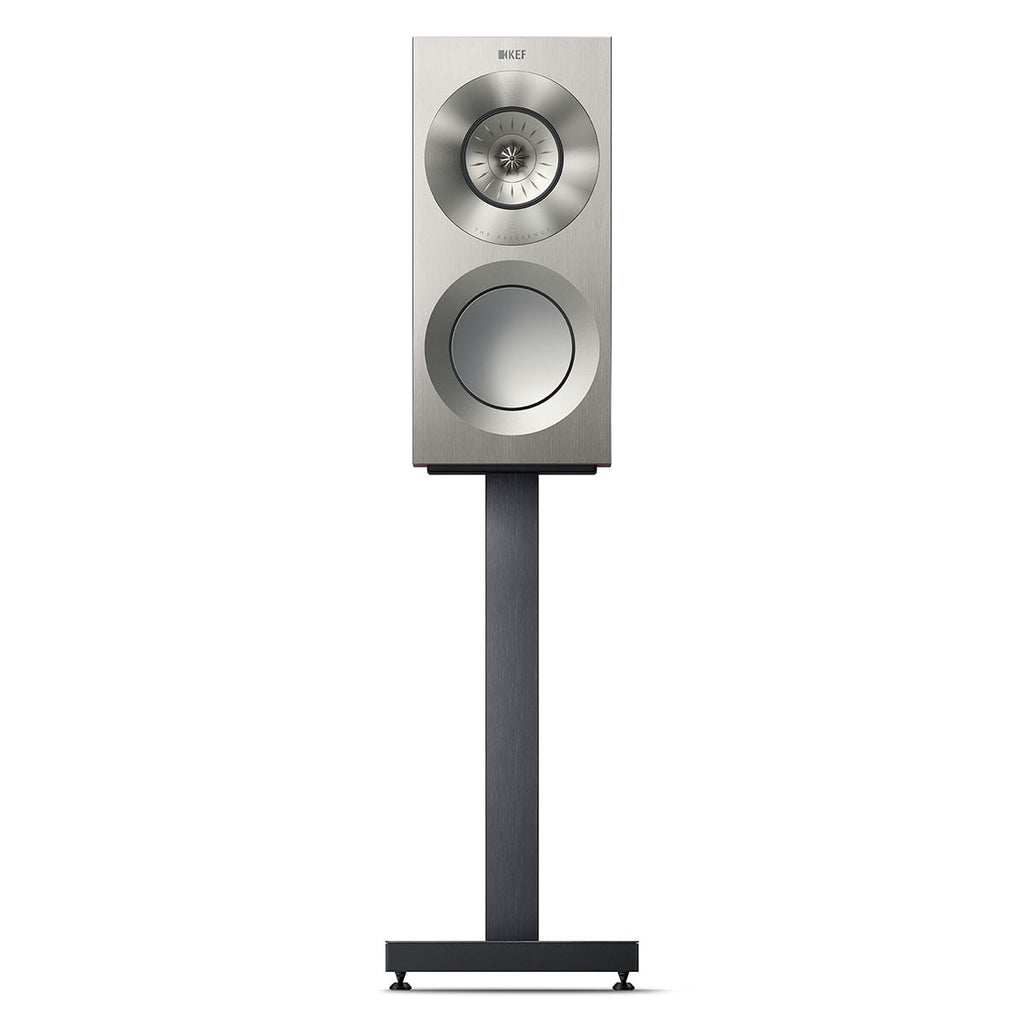

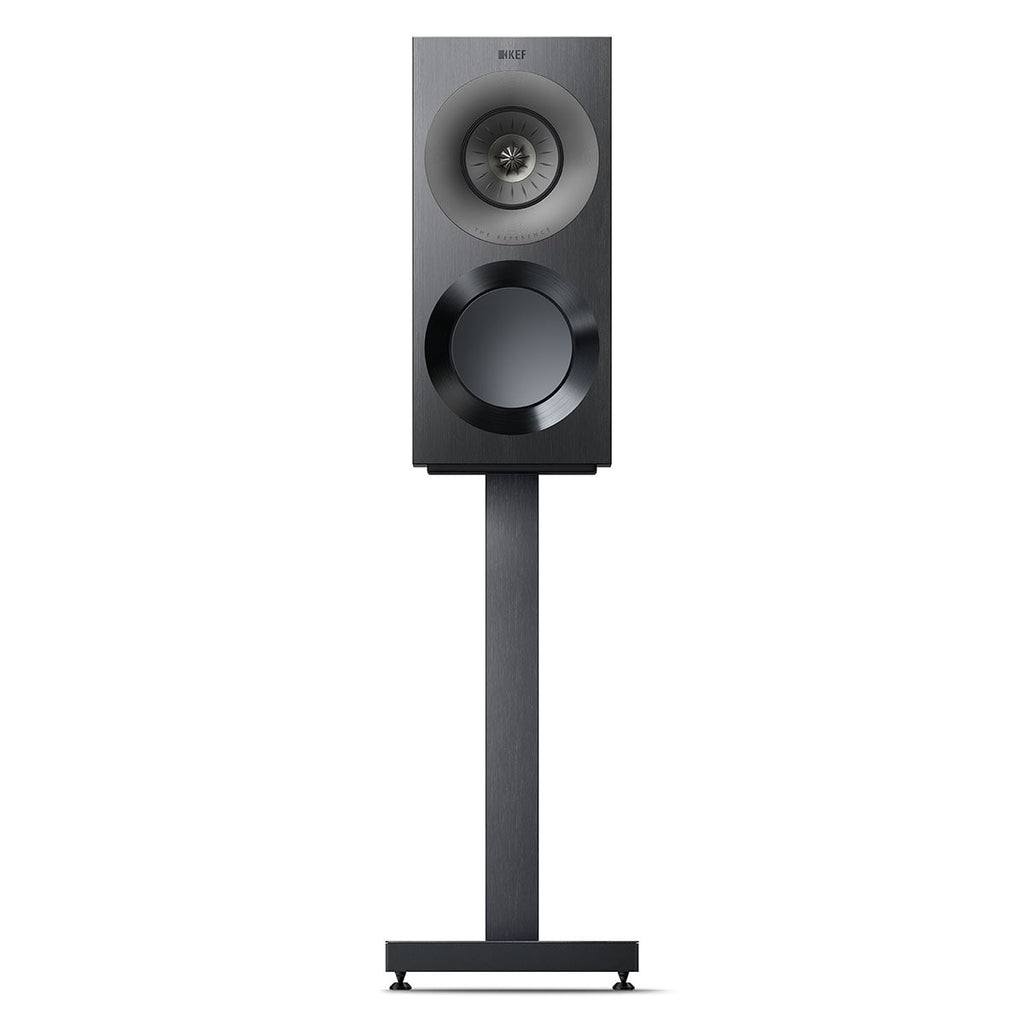

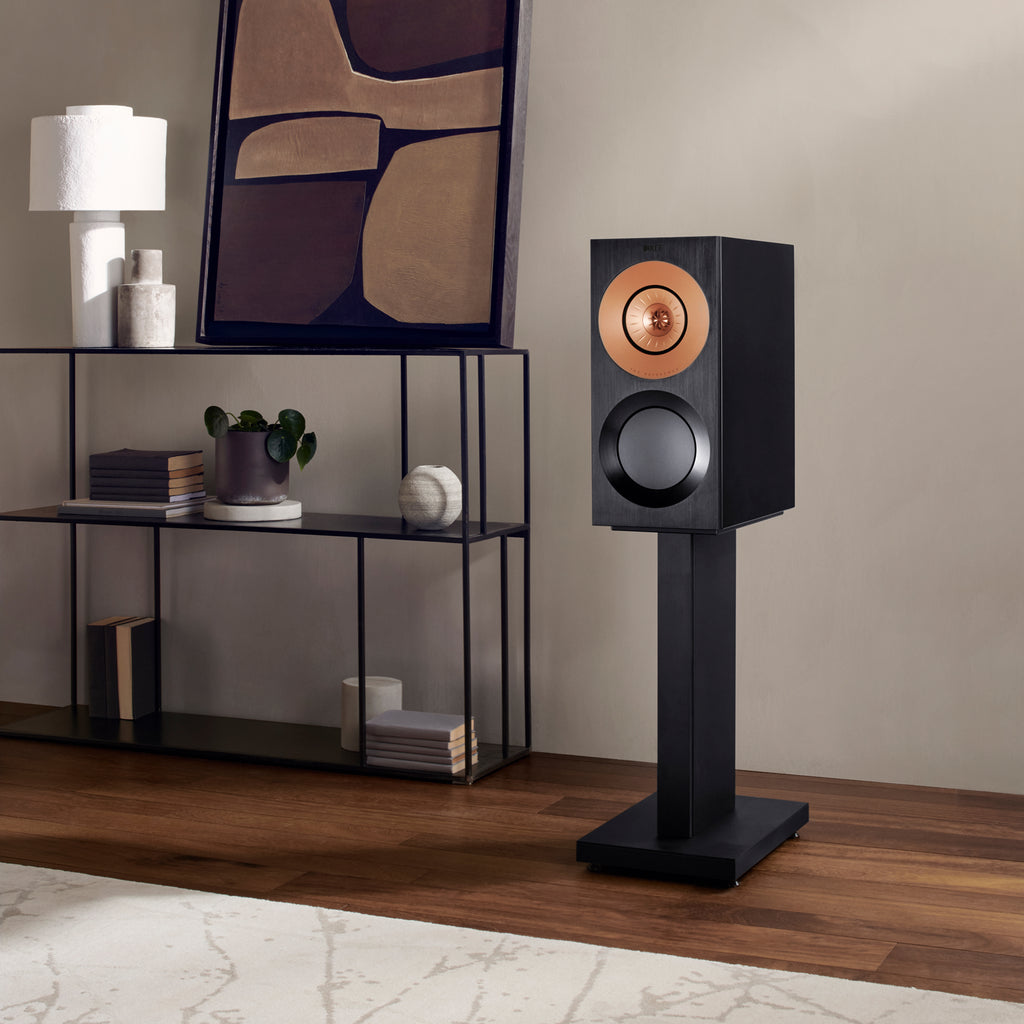

REFERENCE 1

  • 限時限量優惠
  • 正常價格 TWD $260,000

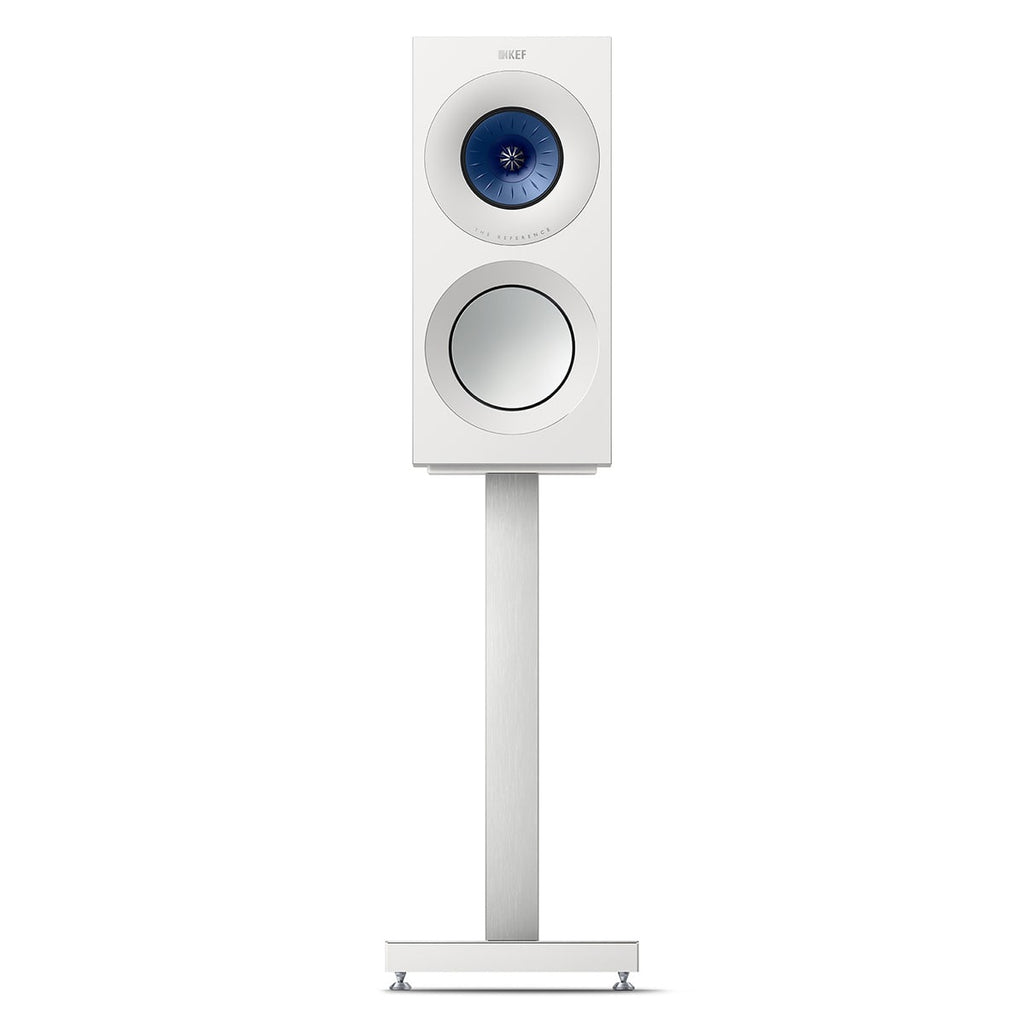

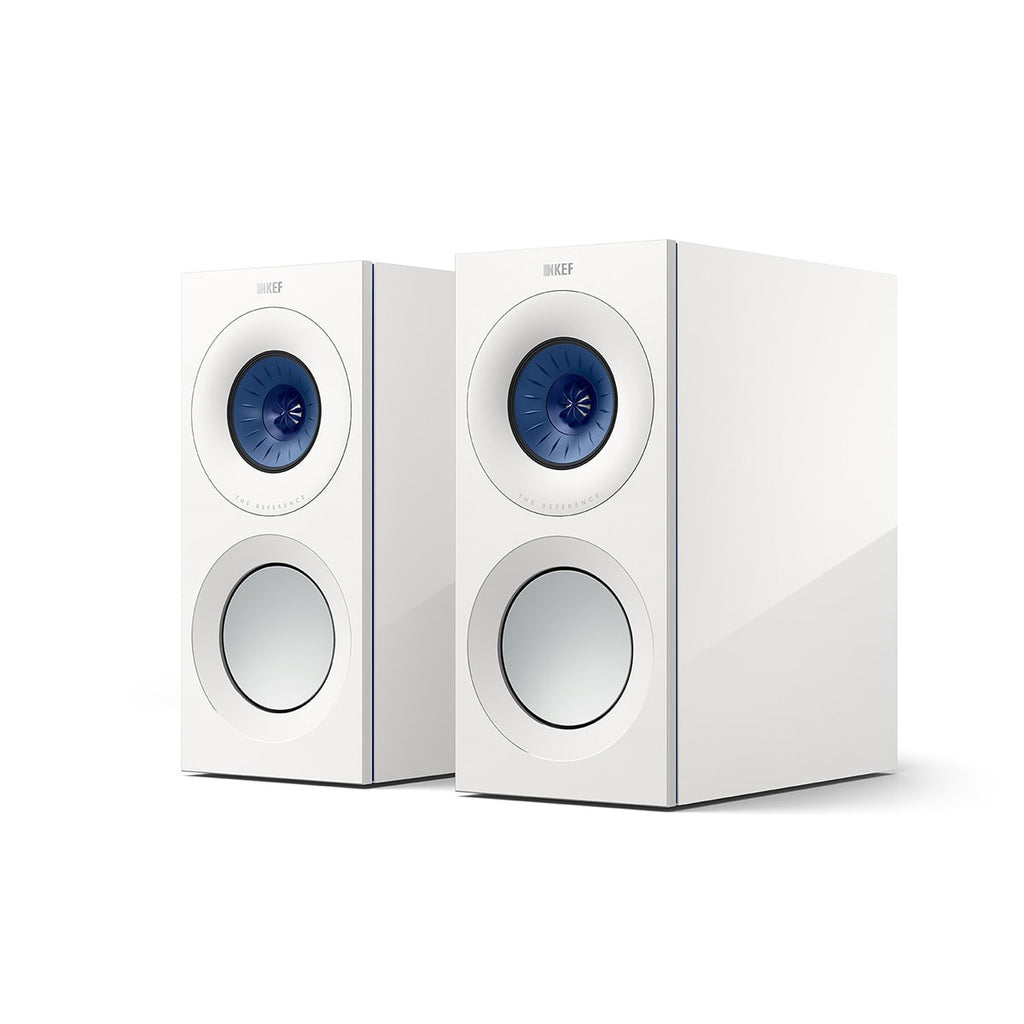

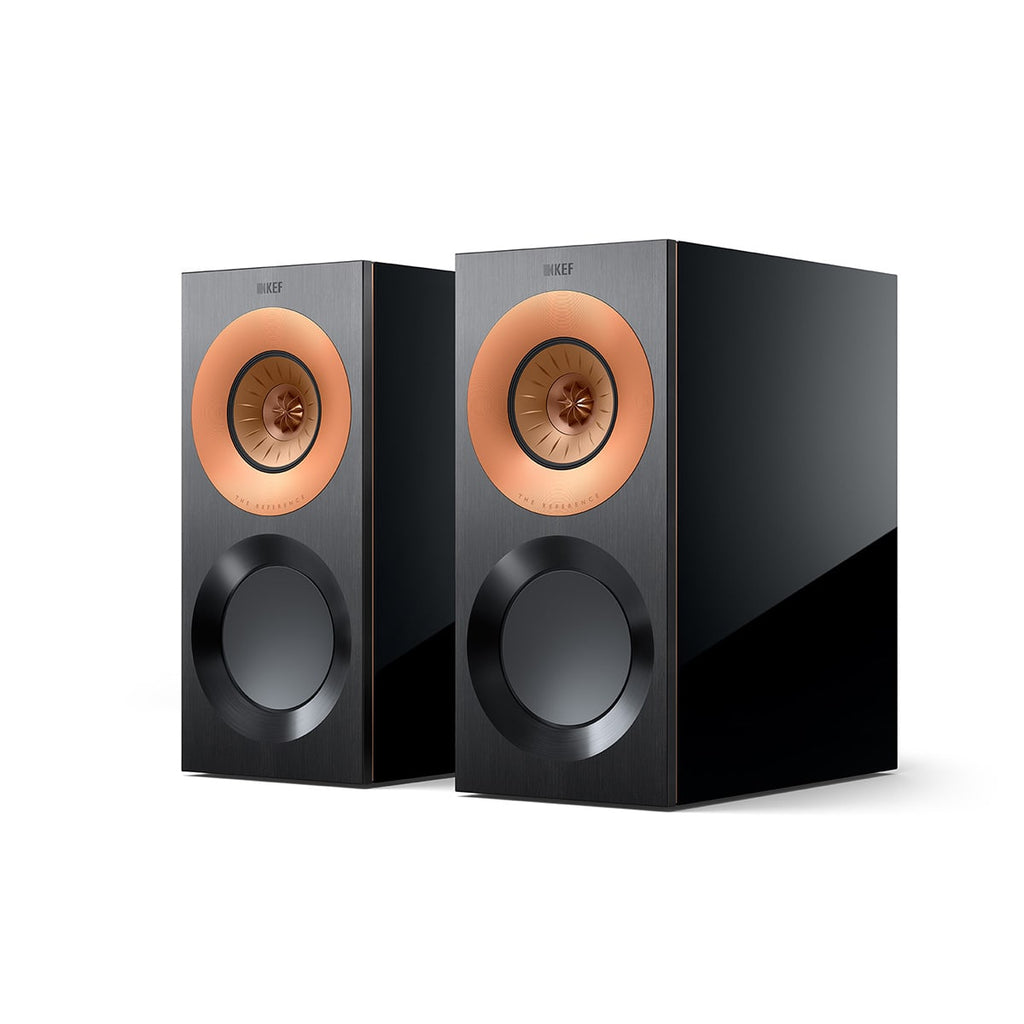

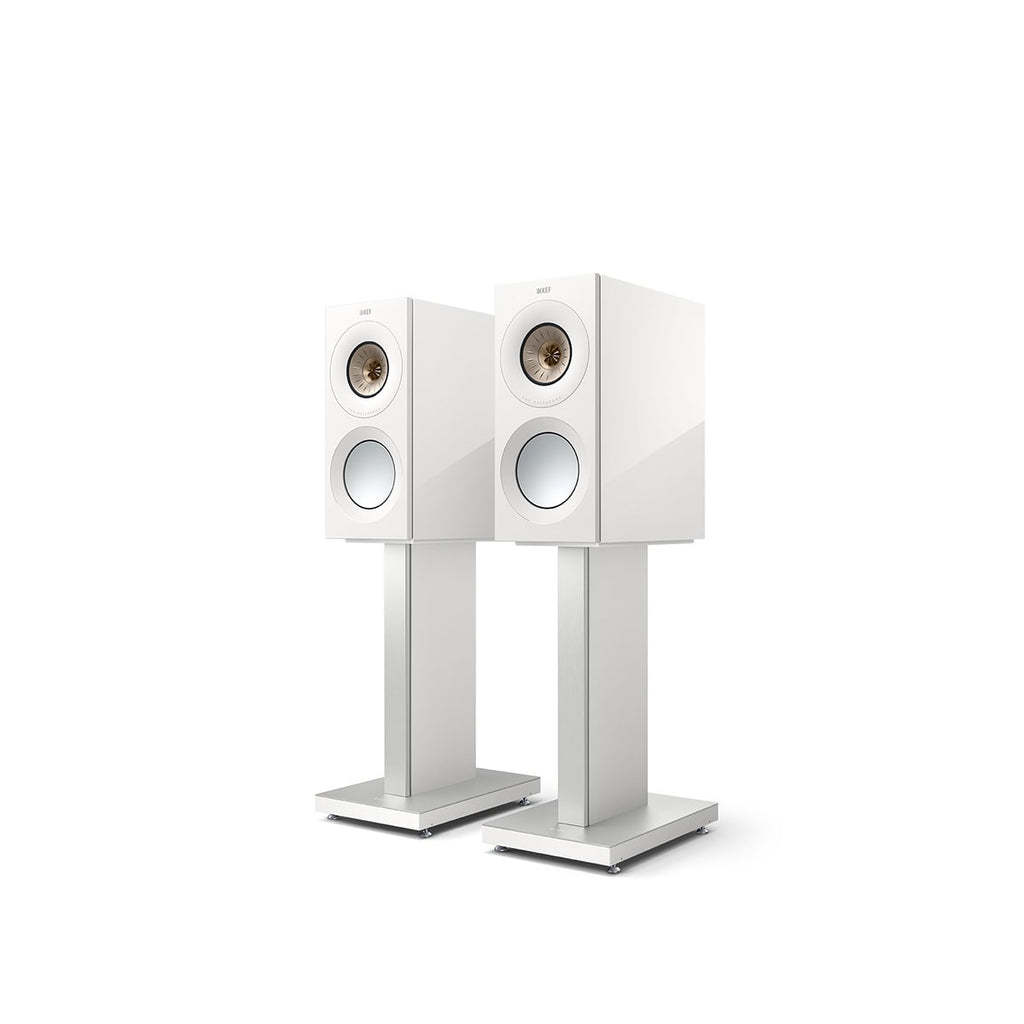

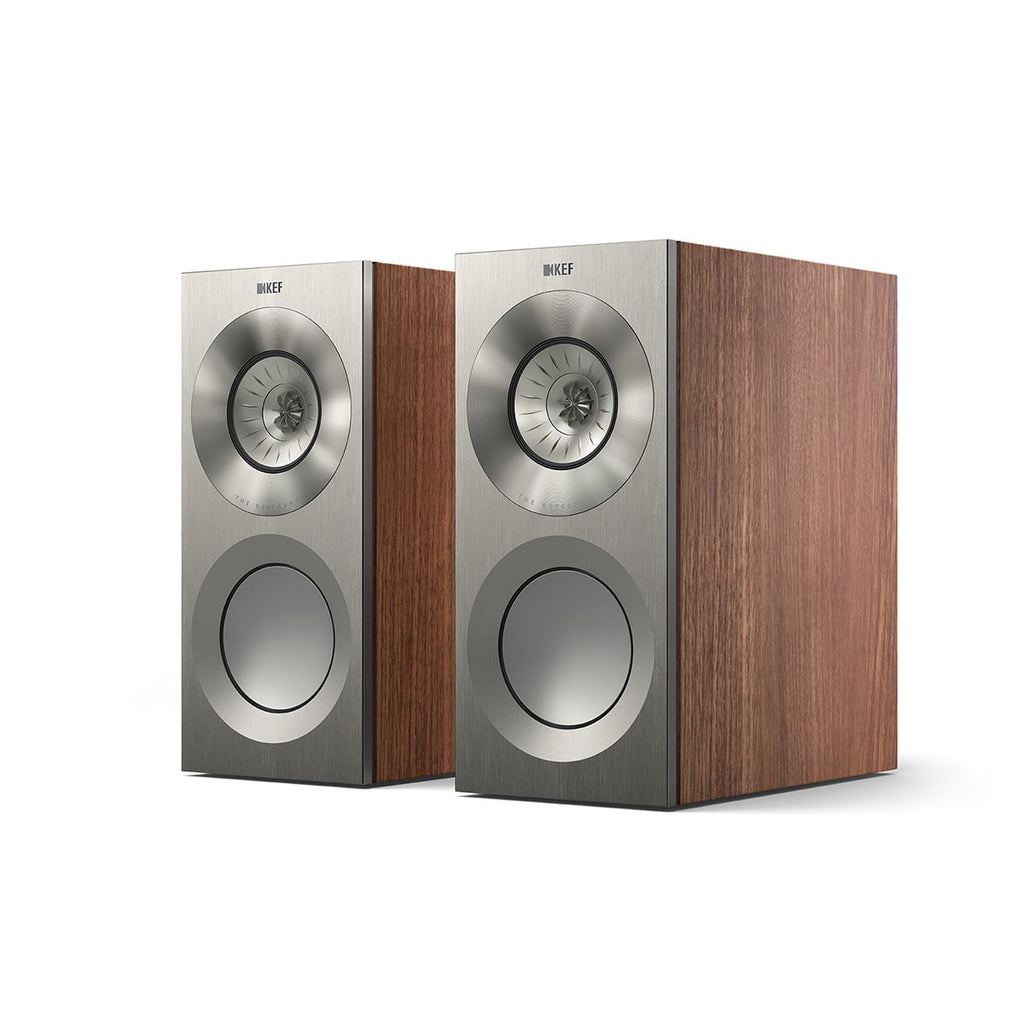

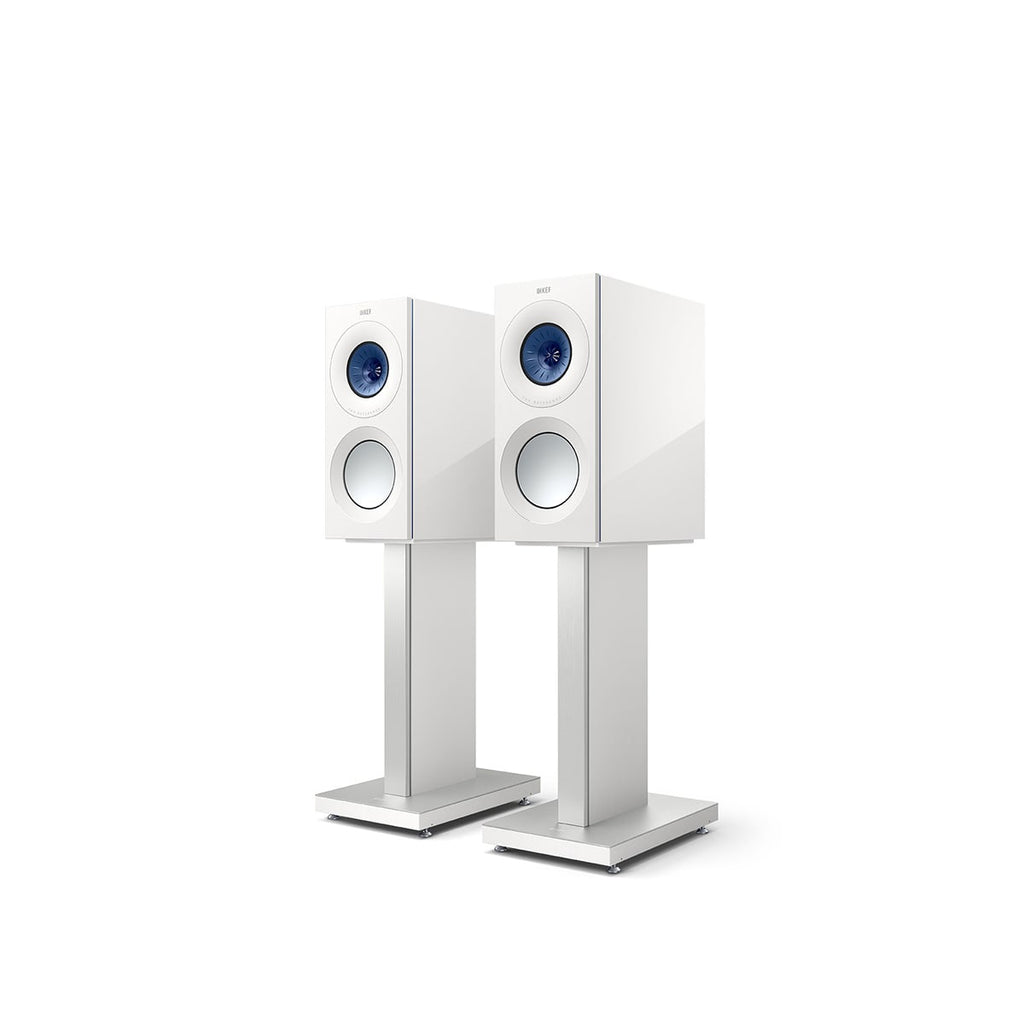

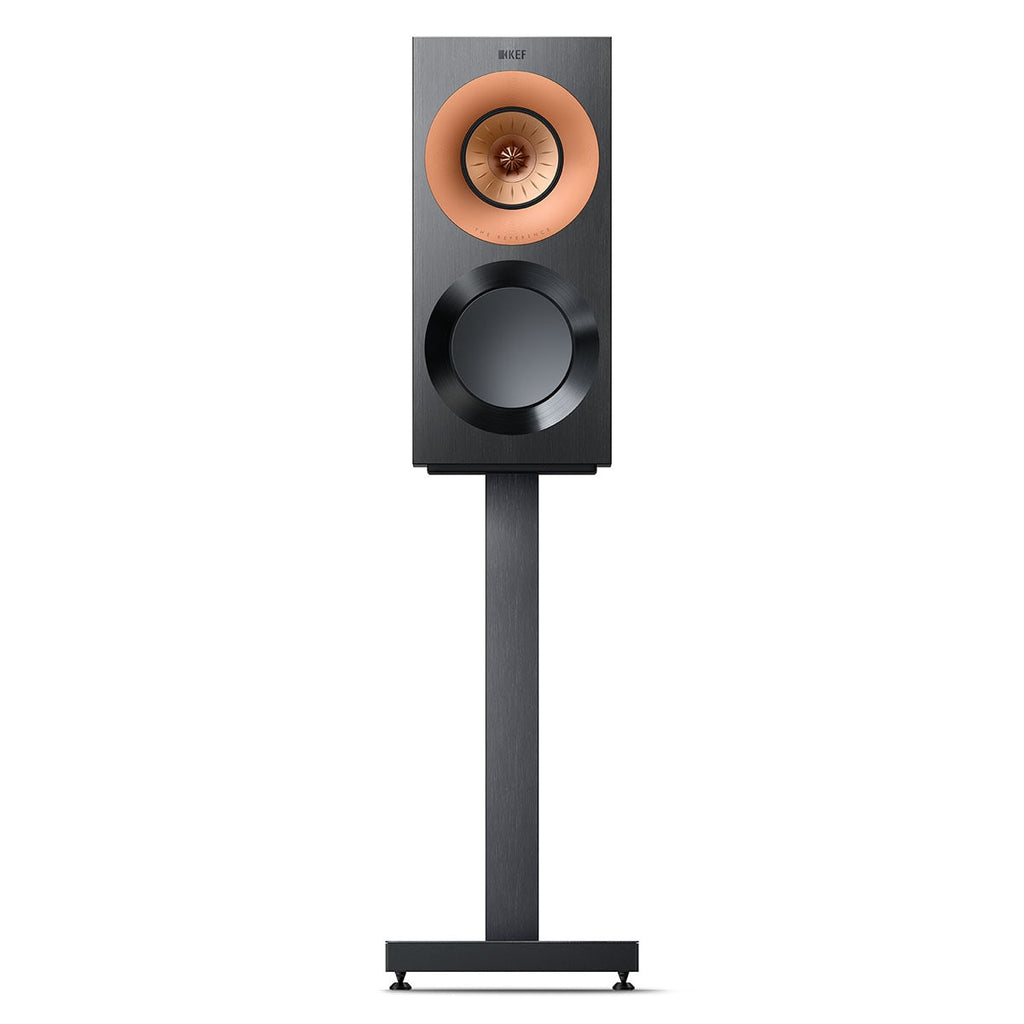

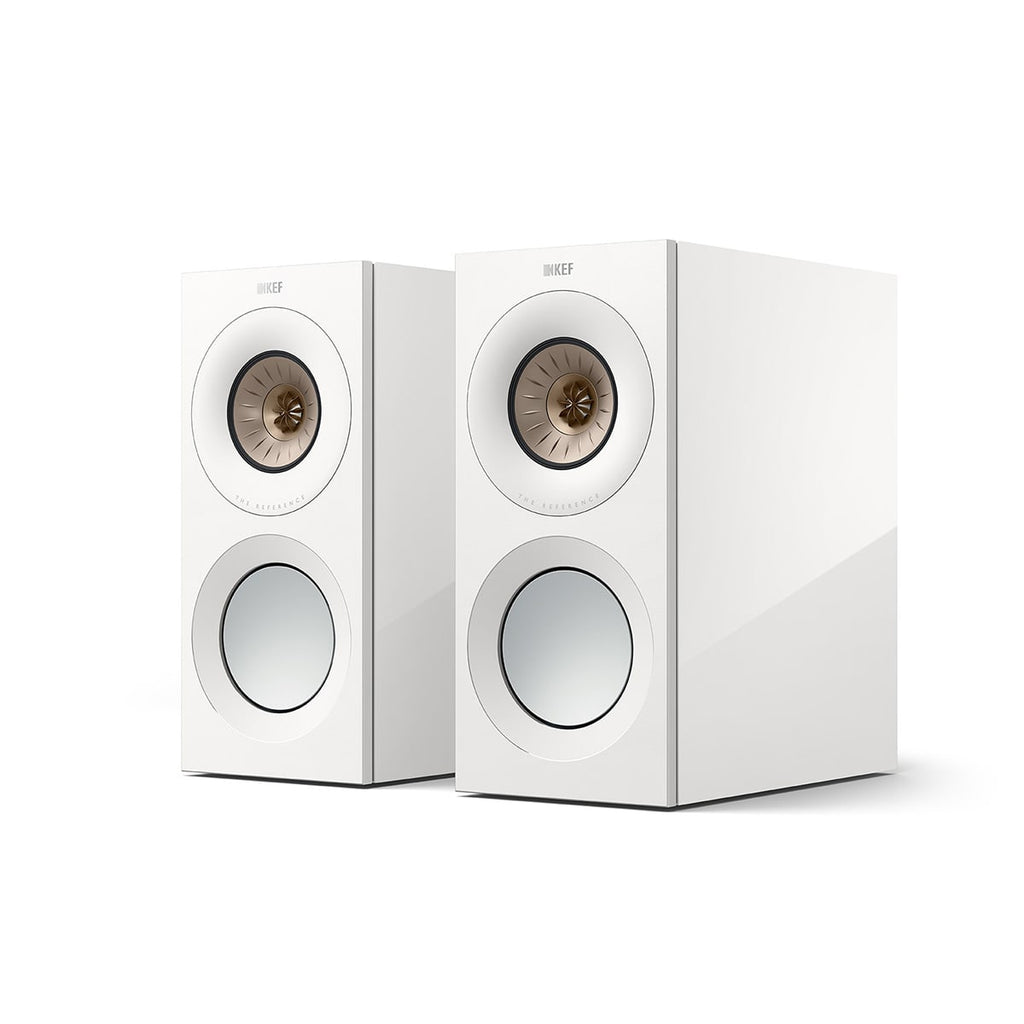

三音路書架式揚聲器

Reference 1 證實了以 KEF 卓越的創新技術,小型箱體也能帶來極具深度、強力的高性能音效。

Hand-built in Maidstone, UK.


音質

REFERENCE 1

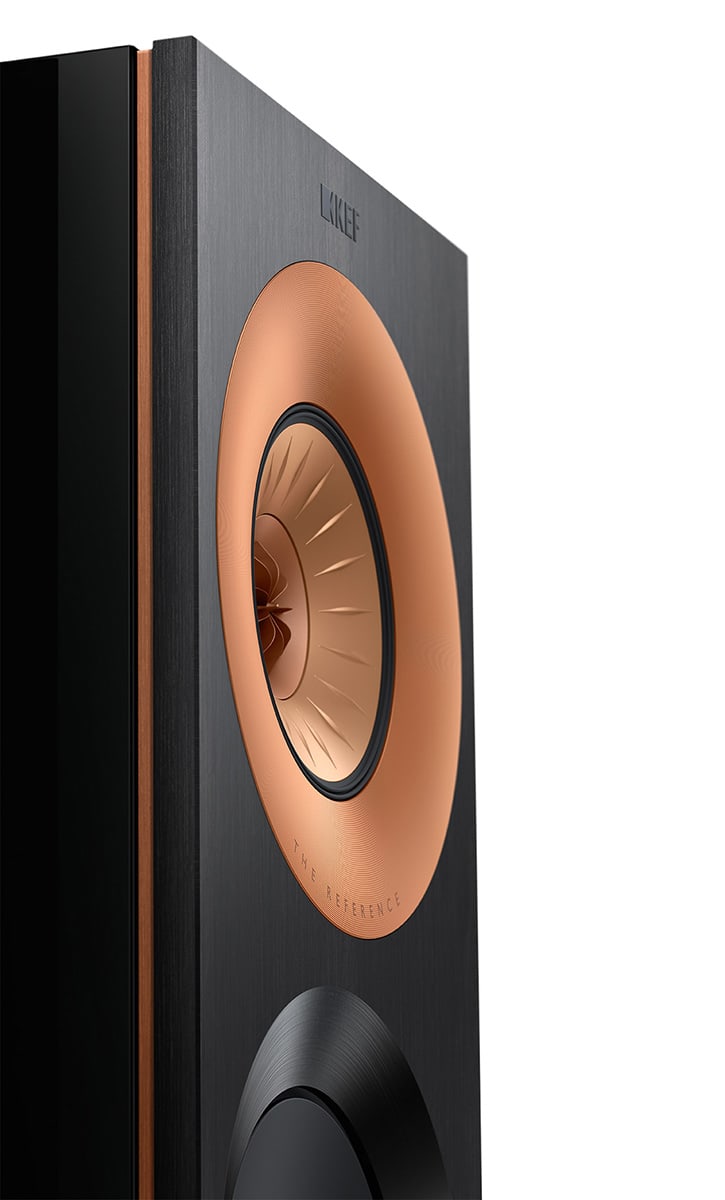

Reference 1 將 KEF 最新的 125mm(5 吋)MF/HF Uni-Q 驅動陣列結合出色的新型 165mm(6.5 吋)合金錐體低音驅動單體,營造極為真實的大範圍音場,加上 Uni-Q 發散性強且寬廣的特性,使其成為家庭劇院系統中的完美後置聲道揚聲器。

SPECIFICATIONS

細節

技術規格

重量

18.2kg (40.1lbs)



尺寸

H x W x D with grille and terminal : 440 x 205 x 430 mm (17.3 x 8.1 x 16.9 in. )



箱體設計

Three-way bass reflex



單位

一對

頻率範圍

Typical in room bass response: 30Hz (-6dB)
Free Field - Short port: 40Hz - 45kHz (-6dB)
Free Field - Long port: 37Hz - 45kHz (-6dB)



TYPICAL IN-ROOM BASS RESPONSE

26Hz (-6dB)



頻率響應

45Hz- 35kHz (±3dB)



諧波失真

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz - 100kHz
<0.2% 200Hz - 10kHz



最大輸出

111 dB (peak sound pressure level at 1m with pink noise)



擴大機

50-200W




靈敏度

85dB (2.83V/1m)



阻抗

8Ohms (min.3.2Ohms)


驅動單體

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units
LF: 1 x165mm (6.5in.) aluminium



分頻點

350Hz, 2.8kHz



檔案下載

THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet





KEF 保留持續研發、修正或更改規格的權利 E. & O.E.

獎項和專業評語

DIAPASON D’OR 2017 AWARD

"Plus points: Magic and precise; outstanding low frequencies. Negative points: Nothing." - 2017

Hi-Fi Choice Yearbook 2016

"One of the finest-sounding standmount speakers we’ve ever heard." - 2016

SoundStage! Network - Reviewers' Choice

"With the Reference 1, KEF has raised the bar for stand-mounted loudspeakers in several ways. In a flash, my wife picked up on the speaker's high-tech appearance and attractive styling. The high level of technology applied -- most notably, the current generation of KEF's Uni-Q coincident driver -- seems nothing short of an engineering marvel. But most important is the Reference 1's quality of sound -- within its bandwidth, it's as accurate as it is musically engaging...KEF's Reference 1 is the best stand-mounted speaker I've ever heard." - 2014
