THX ULTRA Certified 200mm Subwoofer
Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.
Ci200QSb-THX

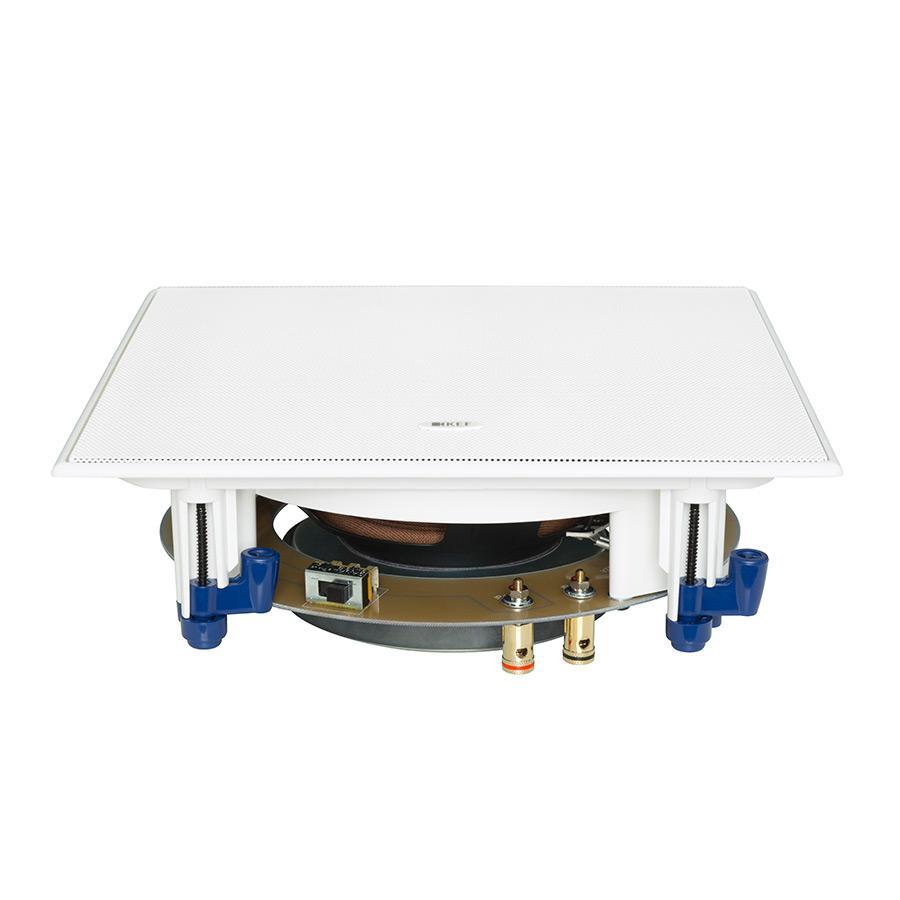

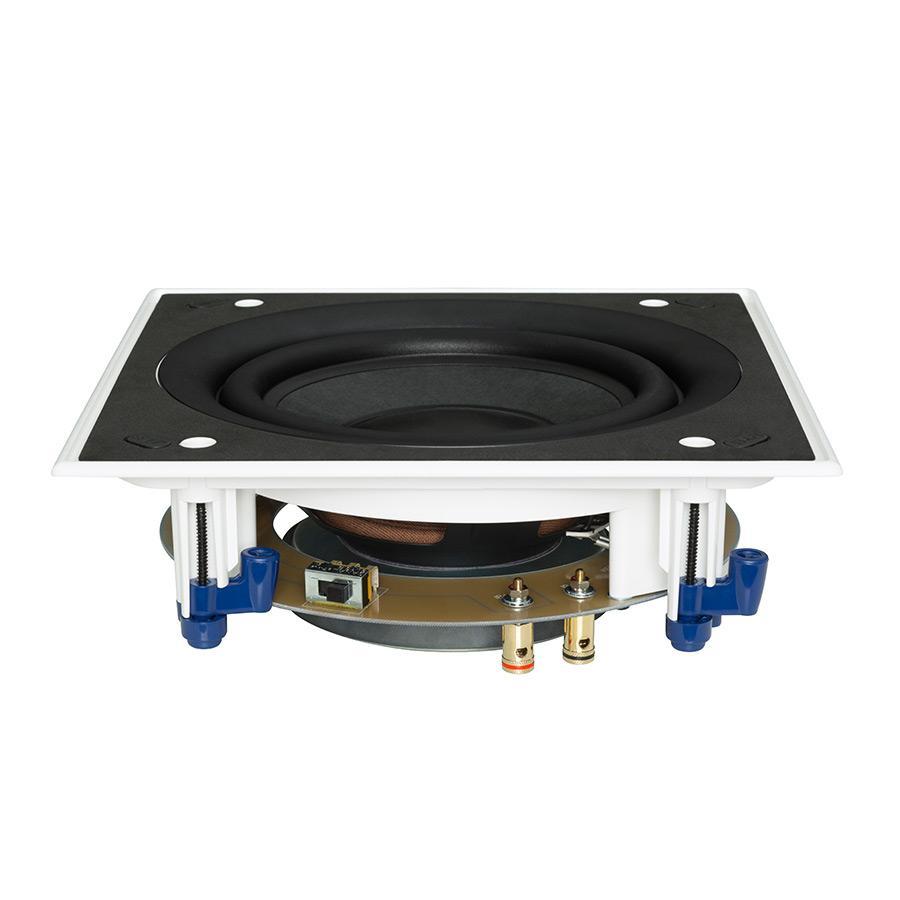

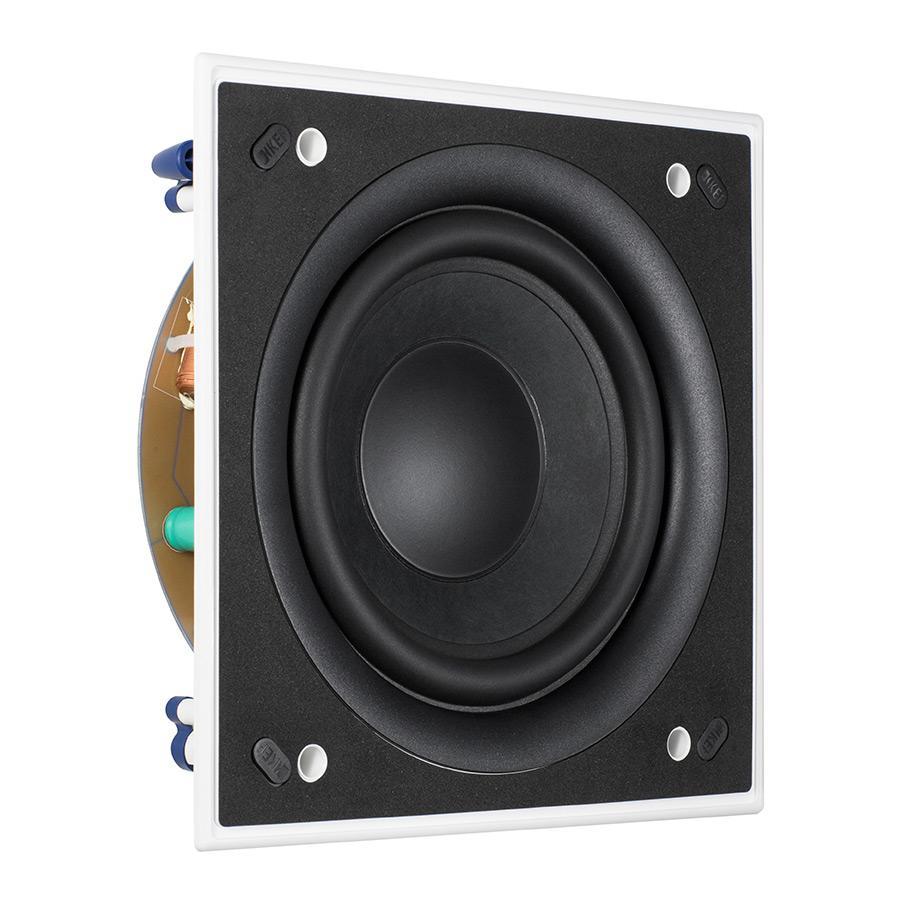

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s Ci series in-wall or in-ceiling speakers. In Active mode, when 2 pair of the Ci200QSb-THX subwoofer are powered by the powerful 250Wx 2 KEF KASA500 System Amplifier the performance meets THX Select2 specification. When 4 pair of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Ultra2 specification.
細節
主要特點
THX Certified Ultra2 / Select2

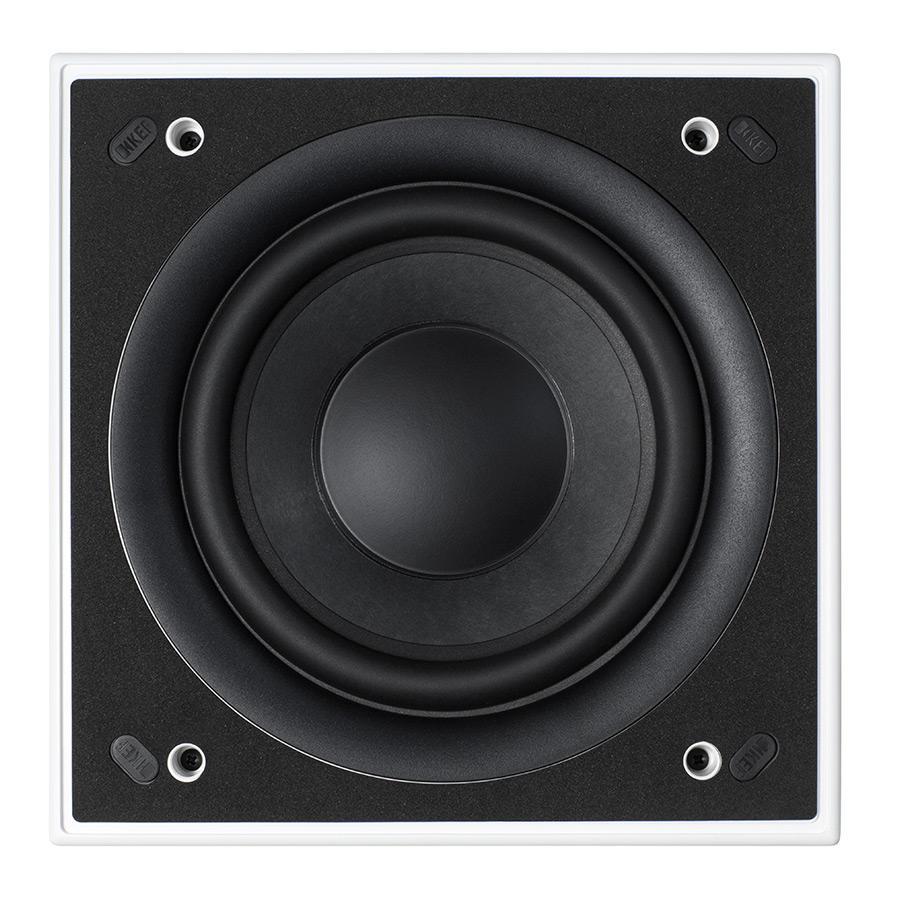

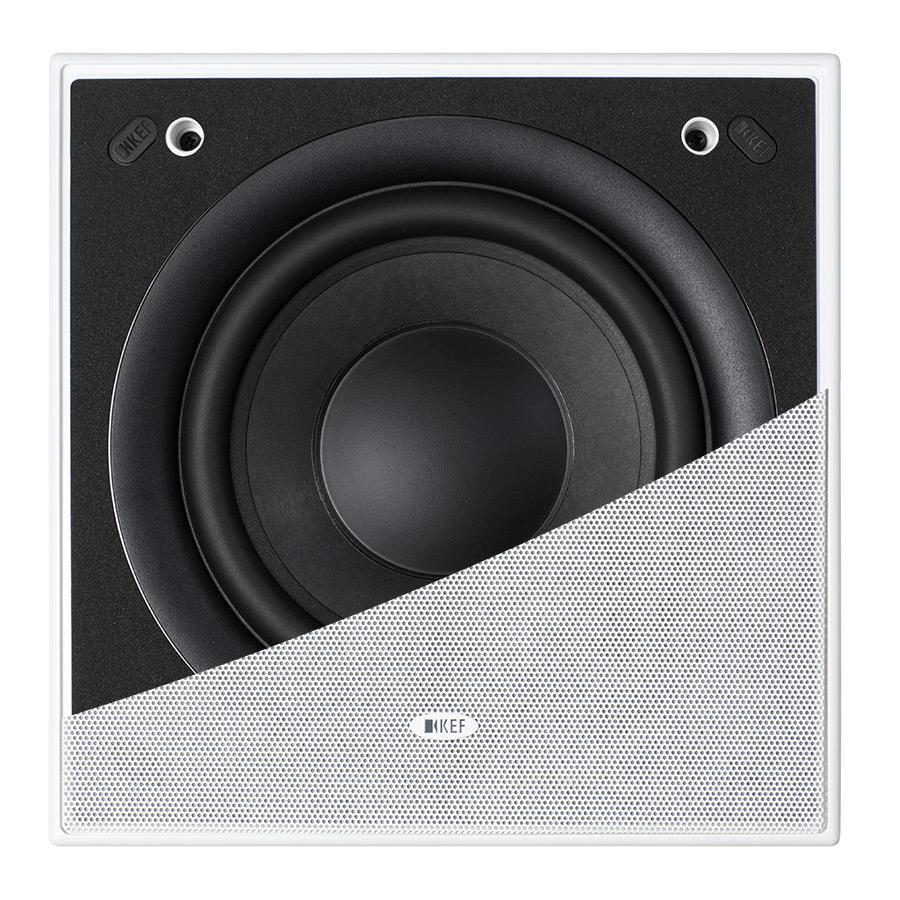

200mm (8in.) woofer unit with extended bass response

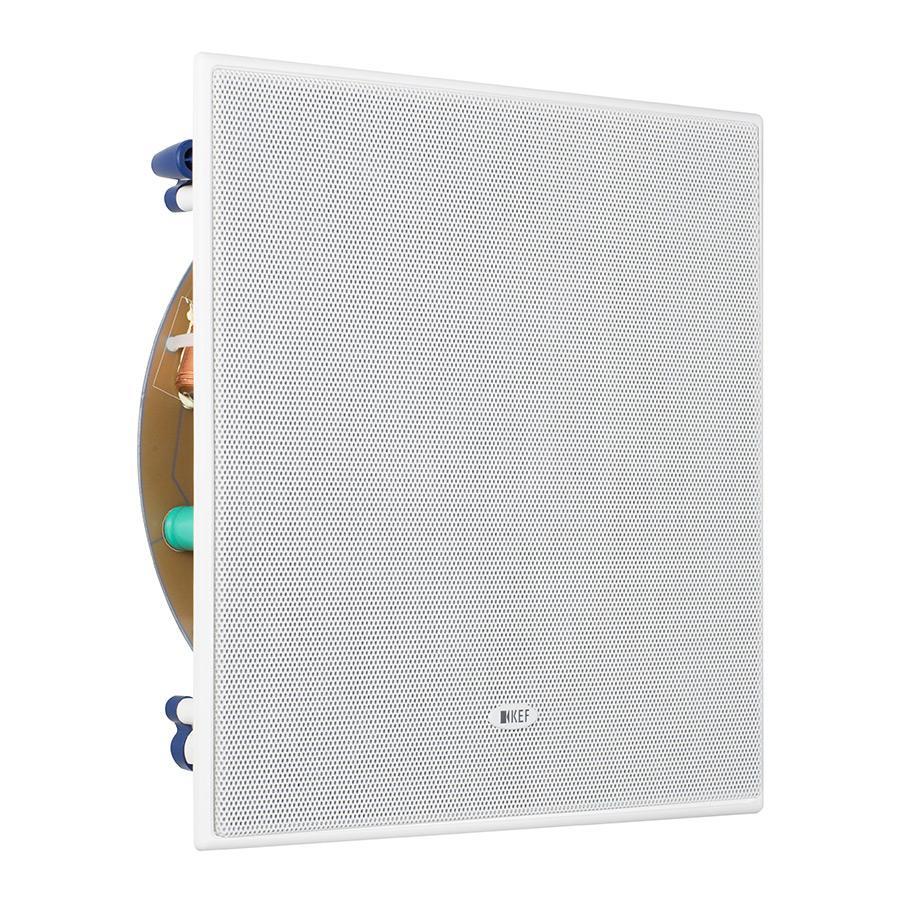

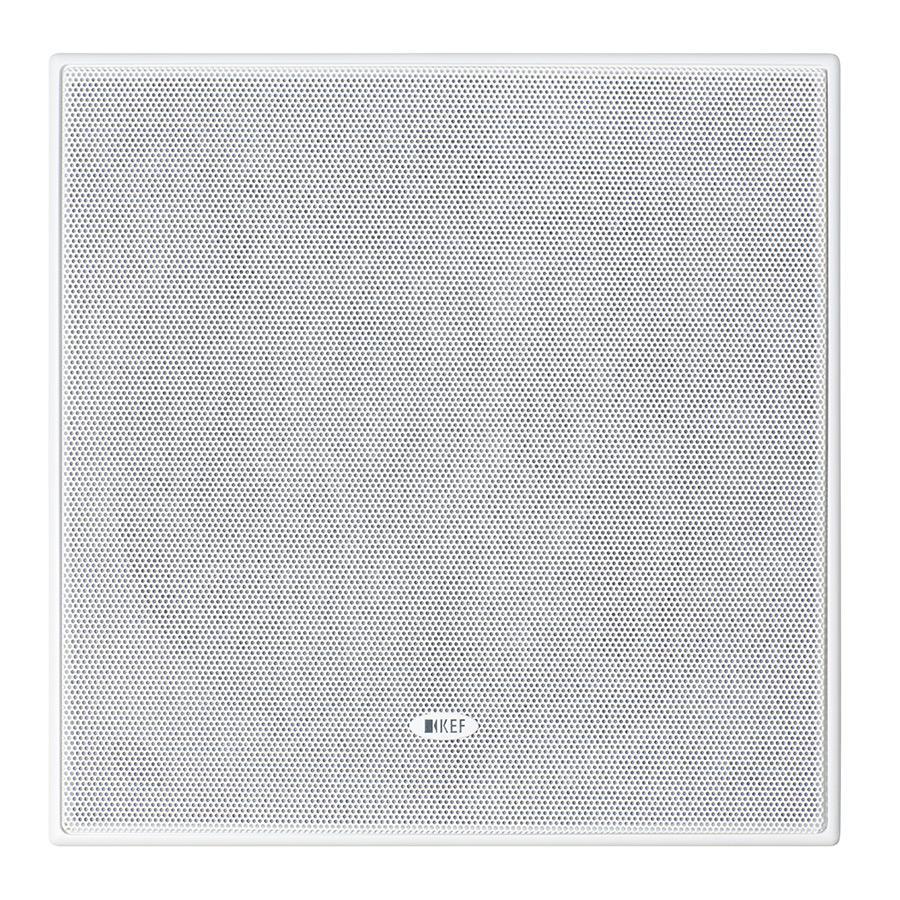

Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor

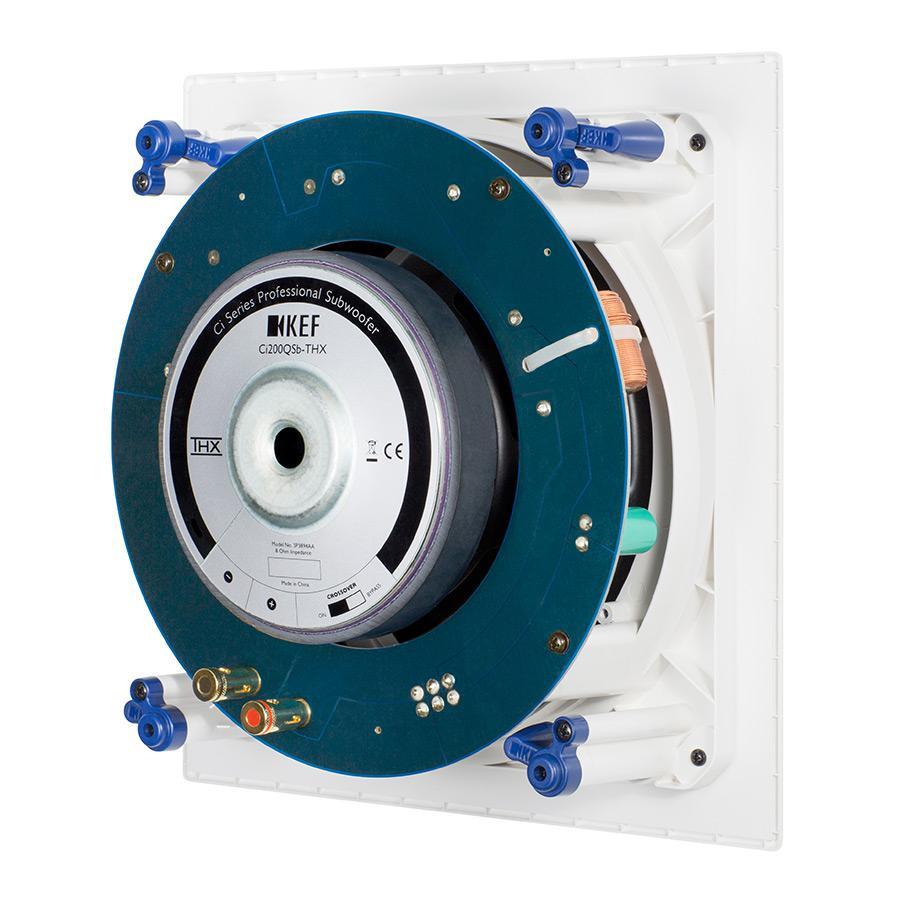

Fast, versatile installation on virtually any surface via dogleg

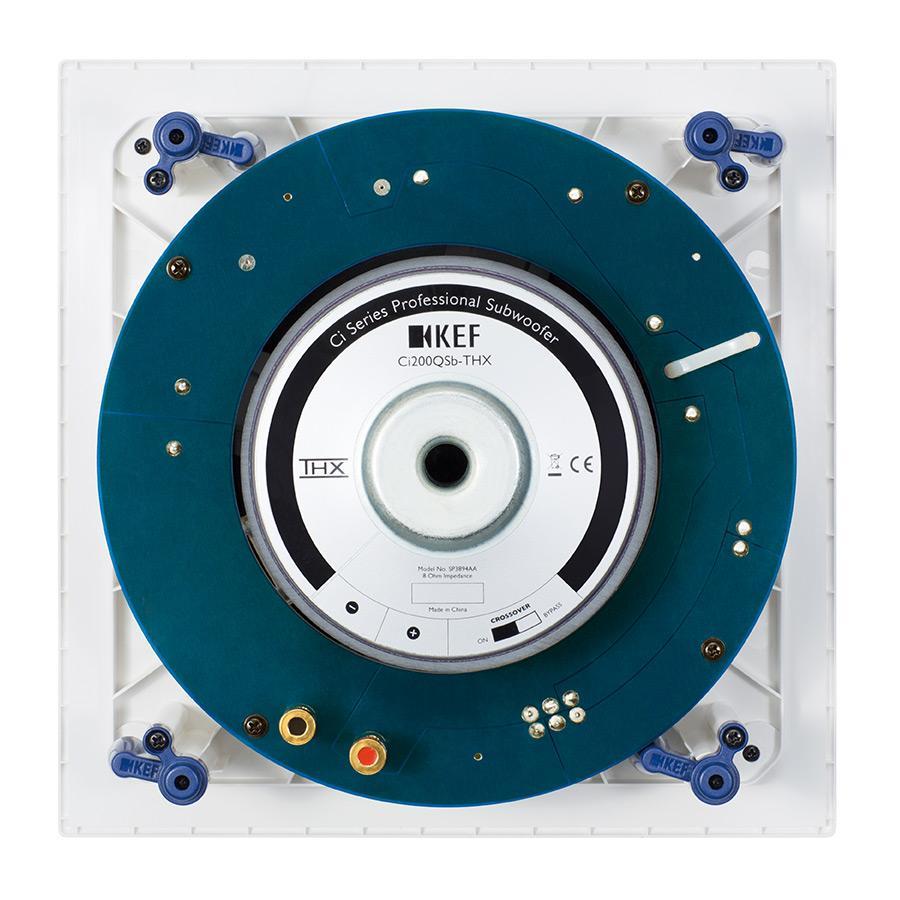

Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
200mm (8in.) woofer unit with extended bass response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
規格
標示阻抗
6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
靈敏度
85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
Crossover Frequencies
100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
頻率響應
40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
18Hz-140Hz - Active Mode (KASA500)
驅動單體
LF: 200mm (8 in.)
Recommended Amplifier Power
10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
KASA500 - Active Mode (KASA500)
產品外部尺寸 (H X W X D)
Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
圖樣尺寸 (H X W)
238 x 238 mm (9.37 x 9.37 in.)
安裝深度
天花板厚度(最大值) : 40mm (1.58 in.)
天花板厚度(最小值) : 6mm (0.24 in.)
天花板厚度(最小值) : 6mm (0.24 in.)
表面安裝深度
101.6mm (4 in.)
選配框架
RIF200S
淨重
3.3kg (7.28 lbs)
單位
一件
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
